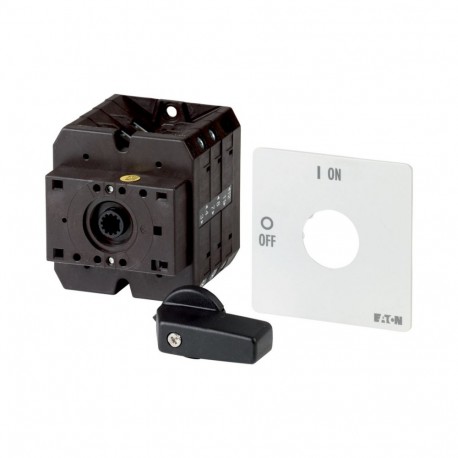

EATON - MOELLER T5B-4-SOND*/X T5B-4-SOND*/X 907961 Y7-907961 EATON ELECTRIC Non-standard switch, T5B, 63 A, rear mounting, Basic switch, 4.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T5B-4-SOND*/X 907961 Y7-907961 EATON ELECTRIC Non-standard switch, T5B, 63 A, rear mounting, Basic switch, 4..

T5B-4-SOND*/X

907961

Y7-907961

EATON - MOELLER

10 Pcs.

Non-standard switch, T5B, 63 A, rear mounting, Basic switch, 4 contact unit(s) T5B-4-SOND*/X Eaton Moeller® series T5B Non-standard switch, T5B, 63 A, rear mounting, Basic switch, 4 contact unit(s) Non-standard switch, Product range: Non-standard switch, Part group reference: T5B, Notes: customized version according to form, Non-standard order: Design number known, Design: rear mounting, Basic switch, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 30 kW, Rated uninterrupted current: Iu = 63 A, 4 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller T5B-4-SOND*/X is a non-standard basic switch built in a four-pole configuration for rear-mounting applications in industrial machinery. Heavy-duty control switches provide reliable manual operation for complex electrical circuits and load distribution paths. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 63 A
  • Rated permanent current at AC-23, 400 V (EF011777): 63 A
  • Rated permanent current at AC-21, 400 V (EF009165): 63 A
  • Rated operation power at AC-3, 400 V (EF001364): 22 kW
  • Rated short-time withstand current lcw (EF007050): 1.3 kA
  • Rated operation power at AC-23, 400 V (EF007027): 30 kW
  • Switching power at 400 V (EF009166): 30 kW
  • Conditioned rated short-circuit current Iq (EF001444): 2 kA
  • Motor drive optional (EF007386): No

More info

▲

General specifications

Product Name
Eaton Moeller® series T5B Non-standard switch
Catalog Number
907961
Model Code
T5B-4-SOND*/X
Product Length/Depth
130 mm
Product Height
85 mm
Product Width
85 mm
Product Weight
0.682 kg
Certifications
VDE 0660
IEC/EN 60947
IEC/EN 60947-3
IEC/EN 60204

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
