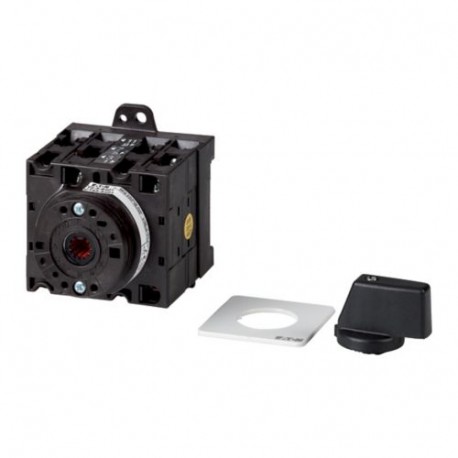

EATON - MOELLER T3-2-SOND*/XZ T3-2-SOND*/XZ 907903 Y7-907903 EATON ELECTRIC Non-standard switch, T3, 32 A, rear mounting, Basic switch, 2 .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-2-SOND*/XZ 907903 Y7-907903 EATON ELECTRIC Non-standard switch, T3, 32 A, rear mounting, Basic switch, 2 ..

T3-2-SOND*/XZ

907903

Y7-907903

EATON - MOELLER

10 Pcs.

Non-standard switch, T3, 32 A, rear mounting, Basic switch, 2 contact unit(s) T3-2-SOND*/XZ Eaton Moeller® series T3 Non-standard switch, T3, 32 A, rear mounting, Basic switch, 2 contact unit(s) Non-standard switch, Product range: Non-standard switch, Part group reference: T3, Notes: customized version according to form, Design: rear mounting, Basic switch, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, 2 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller T3-2-SOND*/XZ non-standard switch offers flexible circuit control capabilities tailored for specialized industrial machine designs. Modular rotary switches are widely used across automated systems to direct complex electrical pathways and operational modes. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 32 A
  • Rated permanent current at AC-23, 400 V (EF011777): 32 A
  • Rated permanent current at AC-21, 400 V (EF009165): 32 A
  • Rated operation power at AC-3, 400 V (EF001364): 11 kW
  • Rated short-time withstand current lcw (EF007050): 0.65 kA
  • Rated operation power at AC-23, 400 V (EF007027): 15 kW
  • Switching power at 400 V (EF009166): 15 kW
  • Conditioned rated short-circuit current Iq (EF001444): 1 kA
  • Motor drive optional (EF007386): No

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Non-standard switch
Catalog Number
907903
Model Code
T3-2-SOND*/XZ
Product Length/Depth
63 mm
Product Height
54 mm
Product Width
61 mm
Product Weight
0.155 kg
Certifications
VDE 0660
IEC/EN 60947-3
IEC/EN 60204
IEC/EN 60947

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
