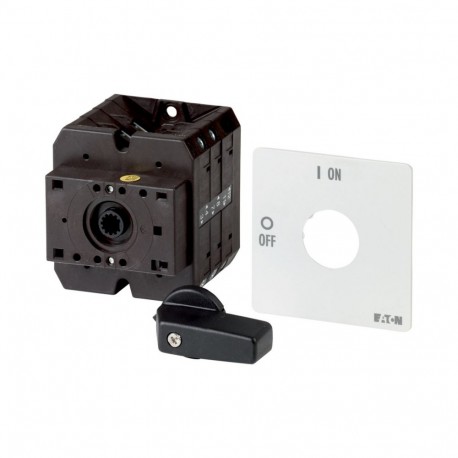

EATON - MOELLER T5-1-SOND*/X T5-1-SOND*/X 908011 Y7-908011 EATON ELECTRIC Non-standard switch, T5, 100 A, rear mounting, Basic switch, 1 .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T5-1-SOND*/X 908011 Y7-908011 EATON ELECTRIC Non-standard switch, T5, 100 A, rear mounting, Basic switch, 1 ..

T5-1-SOND*/X

908011

Y7-908011

EATON - MOELLER

10 Pcs.

Non-standard switch, T5, 100 A, rear mounting, Basic switch, 1 contact unit(s) T5-1-SOND*/X Eaton Moeller® series T5 Non-standard switch, T5, 100 A, rear mounting, Basic switch, 1 contact unit(s) Non-standard switch, Product range: Non-standard switch, Part group reference: T5, Notes: customized version according to form, Non-standard order: Design number known, Design: rear mounting, Basic switch, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 55 kW, Rated uninterrupted current: Iu = 100 A, 1 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Non-standard rotary switches are tailored to specific circuit configurations where off-the-shelf control options are insufficient for unique installation needs. The Eaton Moeller T5-1-SOND*/X delivers high-capacity electrical switching designed for specialized panel architectures.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 100 A
  • Rated permanent current at AC-23, 400 V (EF011777): 100 A
  • Rated permanent current at AC-21, 400 V (EF009165): 100 A
  • Rated operation power at AC-3, 400 V (EF001364): 30 kW
  • Rated short-time withstand current lcw (EF007050): 1.7 kA
  • Rated operation power at AC-23, 400 V (EF007027): 55 kW
  • Switching power at 400 V (EF009166): 55 kW
  • Conditioned rated short-circuit current Iq (EF001444): 2 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series T5 Non-standard switch
Catalog Number
908011
Model Code
T5-1-SOND*/X
Product Length/Depth
80 mm
Product Height
85 mm
Product Width
85 mm
Product Weight
0.286 kg
Certifications
IEC/EN 60947
IEC/EN 60204
VDE 0660
IEC/EN 60947-3
