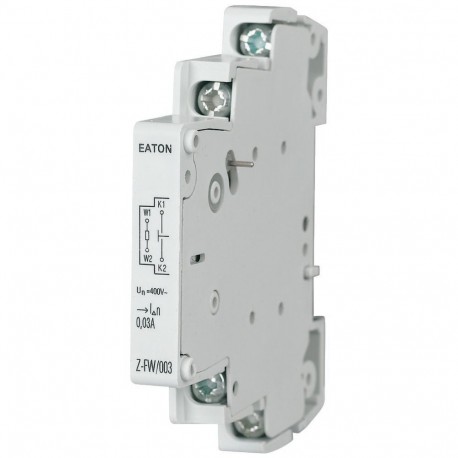

EATON - MOELLER Z-FW/003 Z-FW/003 248298 Y7-248298 EATON ELECTRIC Remote testing module, max. 400V-AC, 0.03A, 0.5HP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

Z-FW/003 248298 Y7-248298 EATON ELECTRIC Remote testing module, max. 400V-AC, 0.03A, 0.5HP

Z-FW/003

248298

Y7-248298

EATON - MOELLER

1 Pcs.

Remote testing module, max. 400V-AC, 0.03A, 0.5HP Z-FW/003 Eaton Distribution parts. Remote testing module, max. 400V-AC, 0.03A, 0.5HP Remote testing module, relay output for tripping test max. 400 V AC, rated fault current 0.03 A, 0.5 SU

Automation > Auxiliary device for distribution board devices
Modular Switchgear – Others and Accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Distribution parts
Catalog Number
248298
Model Code
Z-FW/003
EAN
4015082482985
Product Length/Depth
80 mm
Product Height
65.5 mm
Product Width
8.8 mm
Product Weight
0.04 kg
Compliances
RoHS conform

Product specifications

Type
Application
Switchgear for industrial and advanced commercial applications
Accessory/spare part type
Remote test module
Used with
Remote testing module
Accessory for residual current circuit breaker
Accessory
Equipment heat dissipation, current-dependent
0.02 W
Mounting method
For fitting on left to: FI
Additional equipment required
Monitoring unit
Ambient operating temperature - max
40 °C
Ambient operating temperature - min
-5 °C
Assembly width
0.5 TE
Heat dissipation per pole, current-dependent
0.02 W
Number of contacts (change-over contacts)
0
Number of contacts (normally closed contacts)
0
Number of contacts (normally open contacts)
0
Number of poles at main contact unit - max
0
Number of switches (fault signal)
0
Rated fault current
0.03 A
Voltage type
AC
Functions
With auto test for earth leakage function
Remote drive
Device fitting
Earth leakage switch
Rated operational voltage (Ue) - max
0 V
Rated switch current
0 A
Suitable for current of main contact unit - max
0 A

ETIM for 248298 Modular devices for distribution board/surface mounting (EC001286)
Feature Name Feature Value
Device fitting (EF007826) Earth leakage switch
Width in number of modular spacings (EF002950) 0.5
Number of contacts as normally open contact (EF008256) 0
Number of contacts as normally closed contact (EF008255) 0
Number of contacts as change-over contact (EF008257) 0
Number of fault-signal switches (EF007613) 0
Rated switch current (EF006706) 0 A
Rated voltage (EF000228) 0 V
Voltage type (EF000187) AC
With auto test for earth leakage function (EF008727) Yes
Suitable for max. number of poles main contact unit (total) (EF008729) 0
Suitable for max. current main contact unit (EF008730) 0 A
