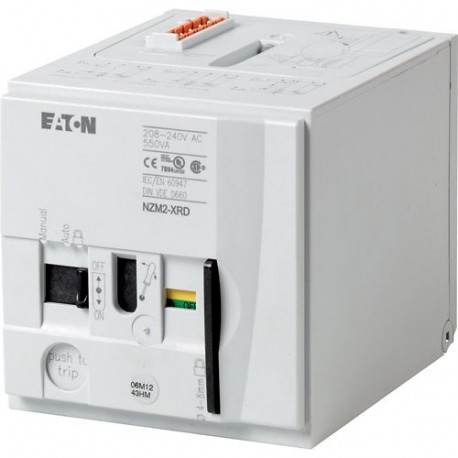

NZM2-XRD24-30DC 115393 Y7-115393 EATON ELECTRIC Remote operator, 24-30VDC, standard
NZM2-XRD24-30DC
115393
Y7-115393
EATON - MOELLER
1 Pcs.
Automation > Motor operator for power circuit-breaker
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Eaton Moeller NZM2-XRD24-30DC remote operator functions as a standardized motor drive unit built to execute electrical commands for circuit breaker switching and spring rearming. This hardware provides automated operational control within switchgear assemblies, helping facilities maintain high uptime and safety standards. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Type of switch drive (EF008233): Motor drive
- Rated control supply voltage AC 50 Hz (EF003978): 0 V
- Rated control supply voltage AC 60 Hz (EF003979): 0 V
- Rated control supply voltage DC (EF003980): 24 V
- Voltage type for actuating (EF008242): DC
More info
▲General specifications
UL/CSA
RoHS conform
CE marking
UL listed
CSA-C22.2 No. 5-09
CSA (Class No. 1437-01)
UL489
CSA (File No. 22086)
IEC60947
UL (Category Control Number DIHS)
CSA certified
Product specifications
- Sliding switch for "Auto" or "Manual"
- Max. number auxiliary contacts: 2 standard auxiliary contacts, 1 trip-indicating auxiliary switches
- Cannot be combined with switch-disconnector PN...
- Cannot be combined with mechanical interlock
- Do not install M22-CK11(20/02) dual auxiliary contacts in the center auxiliary contact slot in NZM2-XRD
N(S)2(-4)
0.75 mm² - 2.5 mm² with ferrule
