View larger
Images are for illustrative purposes only. Please refer to data sheet for details

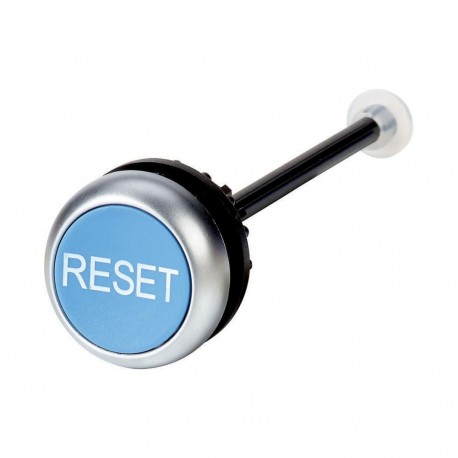

M22-DZ-B-GB14 254834 Y7-254834 EATON ELECTRIC Release pushbutton, blue , RESET
M22-DZ-B-GB14
254834
Y7-254834
EATON - MOELLER
10 Pcs.
Release pushbutton, blue , RESET
M22-DZ-B-GB14
Eaton Moeller® series M22 Release pushbutton, blue, Bezel: titanium, RESET
Release pushbutton, Basic function accessories: Reset buttons, Accessories: Pushbuttons, Function: For enclosed overload relays, For enclosed overload relays, Mounting diameter: 22.3 mm, Mounting diameter: 22.3 mm, blue RESET, Front ring: Bezel: titanium, Connection to SmartWire-DT: no, For use with: ZW7..., ZE, Z5, ZB12, ZB32, ZB65, ZB150
Automation > Front element for push button
Thermal Relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Moeller® series M22 Accessory Release pushbutton
Catalog Number
254834
Model Code
M22-DZ-B-GB14
EAN
4015082548346
Product Length/Depth
120 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.013 kg
Compliances
CE Marked
Certifications
CSA Std. C22.2 No. 14
UL 508
EN 60947
IEC 60947
CE
CSA Class No.: 3211-03
UL
UL File No.: E29184
CSA
IEC/EN 60947
UL Category Control No.: NKCR
CSA-C22.2 No. 14
CSA File No.: 012528
UL 508
EN 60947
IEC 60947
CE
CSA Class No.: 3211-03
UL
UL File No.: E29184
CSA
IEC/EN 60947
UL Category Control No.: NKCR
CSA-C22.2 No. 14
CSA File No.: 012528
| Feature Name | Feature Value |
|---|---|
| Colour button (EF000190) | Blue |
| Number of command positions (EF001372) | 1 |
| Construction type lens (EF006253) | Round |
| Hole diameter (EF000079) | 22 mm |
| Width opening (EF004565) | 0 mm |
| Height opening (EF004778) | 0 mm |
| Type of button (EF001546) | Flat |
| Suitable for lighting (EF001142) | No |
| With protective cover (EF005500) | No |
| Labelled (EF001537) | Yes |
| Switching function latching (EF007447) | No |
| Spring-return (EF001407) | Yes |
| With front ring (EF006014) | Yes |
| Material front ring (EF005972) | Plastic |
| Colour front ring (EF002429) | Chrome |
| Degree of protection (IP), front side (EF003118) | IP67 |
| Degree of protection (NEMA), front side (EF011961) | 4X |
