View larger
Images are for illustrative purposes only. Please refer to data sheet for details

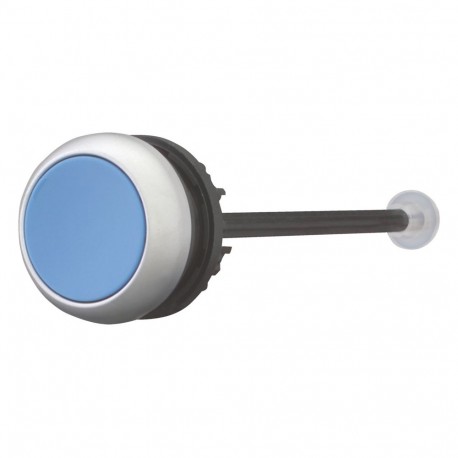

M22-DZ-B 254833 Y7-254833 EATON ELECTRIC Release pushbutton, blue
M22-DZ-B
254833
Y7-254833
EATON - MOELLER
10 Pcs.
Release pushbutton, blue
M22-DZ-B
Eaton Moeller® series M22 Release pushbutton, blue, Bezel: titanium
Release pushbutton, Basic function accessories: Reset buttons, Accessories: Pushbuttons, Function: For enclosed overload relays, For enclosed overload relays, Mounting diameter: 22.3 mm, Mounting diameter: 22.3 mm, Blue, Front ring: Bezel: titanium, Connection to SmartWire-DT: no, For use with: ZW7..., ZE, Z5, ZB12, ZB32, ZB65, ZB150
Automation > Front element for push button
Thermal Relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Moeller® series M22 Accessory Release pushbutton
Catalog Number
254833
Model Code
M22-DZ-B
EAN
4015082548339
Product Length/Depth
120 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.013 kg
Certifications
CSA
CSA File No.: 012528
CE
UL
UL 508
IEC/EN 60947
CSA Class No.: 3211-03
UL File No.: E29184
CSA-C22.2 No. 14
UL Category Control No.: NKCR
CSA File No.: 012528
CE
UL
UL 508
IEC/EN 60947
CSA Class No.: 3211-03
UL File No.: E29184
CSA-C22.2 No. 14
UL Category Control No.: NKCR
| Feature Name | Feature Value |
|---|---|
| Colour button (EF000190) | Blue |
| Number of command positions (EF001372) | 1 |
| Construction type lens (EF006253) | Round |
| Hole diameter (EF000079) | 22 mm |
| Width opening (EF004565) | 0 mm |
| Height opening (EF004778) | 0 mm |
| Type of button (EF001546) | Flat |
| Suitable for lighting (EF001142) | No |
| With protective cover (EF005500) | No |
| Labelled (EF001537) | No |
| Switching function latching (EF007447) | No |
| Spring-return (EF001407) | Yes |
| With front ring (EF006014) | Yes |
| Material front ring (EF005972) | Plastic |
| Colour front ring (EF002429) | Chrome |
| Degree of protection (IP), front side (EF003118) | IP67 |
| Degree of protection (NEMA), front side (EF011961) | 4X |
