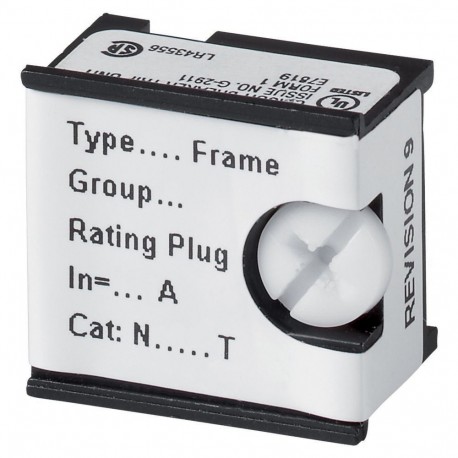

+IZMX-RP16-800 124041 EATON ELECTRIC Rating plug, 800A, IZMX16
+IZMX-RP16-800
124041
EATON - MOELLER
1 Pcs.
Automation > Current transformer
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Eaton Moeller +IZMX-RP16-800 is a through-feed current converter rating plug designed for circuit breaker electronic trip units in industrial electrical protection architectures. This device ensures that breaker trip curves accurately reflect rated operating parameters for optimal system safety. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Model (EF000010): Through-feed current converter
- Rated primary current (EF007405): 800 A
- Rated secondary current (EF007471): 0 A
- Rated secondary apparent power (EF007470): 0 VA
- Accuracy class (EF008842): 1
- Calibrated (EF008836): No
- With contact protection (EF008186): Yes
- Opening diameter (EF005153): 0 mm
- Snap mounting (EF007462): No
- With copper rail (EF007380): No
- Number of primary inputs (EF006947): 1
More info
▲Delivery program
The rating plug’s nominal value must be less than or equal to the basic device’s rated current.
The rating plug can be replaced on site without replacing the transformer.
200 A, 250 A and 300 A rating plugs cannot be combined with P-trip units.
