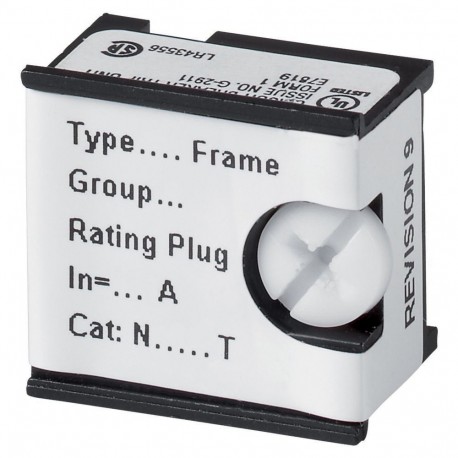

EATON - MOELLER +IZMX-RP16-500 +IZMX-RP16-500 124035 EATON ELECTRIC Rating plug, 500A, IZMX16 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

+IZMX-RP16-500 124035 EATON ELECTRIC Rating plug, 500A, IZMX16

+IZMX-RP16-500

124035

EATON - MOELLER

1 Pcs.

Rating plug, 500A, IZMX16 Rate current module for adapting to changes in the basic conditions for an application. The rate current module's nominal value must be less than or equal to the basic device’s rated current. The rate current module can be replaced on site without replacing the transformer. Rate current module 200 A, 250 A and 300 A can be combined with P-trip units.

Automation > Current transformer

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
circuit limiter, low voltage, 500 A, AC 125 V, DC 80 V, 22.2 x 81 mm, UL, very fast acting
Fuse, circuit limiter, low voltage, 500 A, AC 125 V, DC 80 V, 22.2 x 81 mm, UL, very fast acting, UL, Breaking Capacity 2.5 kA, Optional accessories fuse-block 4164, Supplied with
[

Delivery program

Product range
Fuse
Basic function
circuit limiter
Field of application
low voltage
Rated current [I]
500 A
Rated voltage
AC 125 V
DC 80 V
Size
22.2 x 81 mm
Breaking Capacity
2.5 kA
Release characteristic [class]
very fast acting
Standard/Approval
UL
Standards/Regulations
UL
Optional accessories
fuse-block 4164
,

Technical data ETIM 7.0

Circuit breakers and fuses (EG000020) / Low Voltage HRC fuse (EC000055)
Electric engineering, automation, process control engineering / Electrical installation, device / Safety fuse inserts / Low-Voltage HRC fuse ([email protected] [AFZ800015])
Construction size
Other
Rated current
500 A
Rated voltage
80 V
Voltage type
AC/DC
Rated switching capacity
2.5 kA
Utilization category
Other
Type of fuse status indicator
None
Insulated metal gripping lugs (IMGL)
No
]

ETIM for 124035 Low-voltage industrial controls and switchgear (EC002048)
Feature Name Feature Value
Model (EF000010) Through-feed current converter
Rated primary current (EF007405) 500 A
Rated secondary current (EF007471) 0 A
Rated secondary apparent power (EF007470) 0 VA
Accuracy class (EF008842) 1
Calibrated (EF008836) No
With contact protection (EF008186) Yes
Opening diameter (EF005153) 0 mm
Snap mounting (EF007462) No
With copper rail (EF007380) No
Number of primary inputs (EF006947) 1
