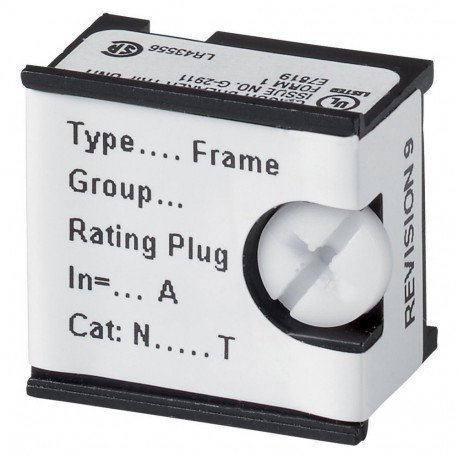

EATON - MOELLER +IZMX-RP16-400 +IZMX-RP16-400 124032 EATON ELECTRIC Rating plug, 400A, IZMX16 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

+IZMX-RP16-400 124032 EATON ELECTRIC Rating plug, 400A, IZMX16

+IZMX-RP16-400

124032

EATON - MOELLER

1 Pcs.

Rating plug, 400A, IZMX16 Rate current module for adapting to changes in the basic conditions for an application. The rate current module's nominal value must be less than or equal to the basic device’s rated current. The rate current module can be replaced on site without replacing the transformer. Rate current module 200 A, 250 A and 300 A can be combined with P-trip units.

Automation > Current transformer

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Fuse-link, LV, 630 A, AC 400 V, NH3, gFF, IEC, dual indicator, insulated gripping lugs
Fuse, fuse-link, low voltage, 630 A, AC 400 V, NH3, gFF, IEC, dual (combination) indicator system, square-body with knife blade contacts, insulated gripping lugs, IEC 60269-1. Breaking capacity 120 kA
[

Delivery program

Product range
Fuse
Field of application
low voltage
Rated current [I]
630 A
Rated voltage
AC 400 V
Construction size
NH3
Utilization category
gFF
Status indicator
dual indicator
Description
insulated gripping lugs
Breaking Capacity
120 kA
Standard/Approval
IEC
Shape
square-body with knife blade contacts
Standards/Regulations
IEC 60269-1
Optional accessories
fuse-holder SD3-D
,

Design verification as per IEC/EN 61439

Rated operational current for specified heat dissipation [In]
630 A
Equipment heat dissipation, current-dependent [Pvid]
44 W
,

Technical data ETIM 7.0

Circuit breakers and fuses (EG000020) / Low Voltage HRC fuse (EC000055)
Electric engineering, automation, process control engineering / Electrical installation, device / Safety fuse inserts / Low-Voltage HRC fuse ([email protected] [AFZ800015])
Construction size
NH3
Rated current
630 A
Rated voltage
400 V
Voltage type
AC
Rated switching capacity
120 kA
Utilization category
Other
Type of fuse status indicator
Combination fuse status indicator
Insulated metal gripping lugs (IMGL)
Yes
]

ETIM for 124032 Low-voltage industrial controls and switchgear (EC002048)
Feature Name Feature Value
Model (EF000010) Through-feed current converter
Rated primary current (EF007405) 400 A
Rated secondary current (EF007471) 0 A
Rated secondary apparent power (EF007470) 0 VA
Accuracy class (EF008842) 1
Calibrated (EF008836) No
With contact protection (EF008186) Yes
Opening diameter (EF005153) 0 mm
Snap mounting (EF007462) No
With copper rail (EF007380) No
Number of primary inputs (EF006947) 1
