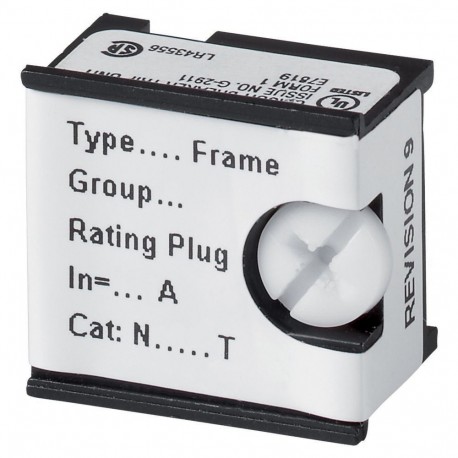

EATON - MOELLER +IZMX-RP16-300 +IZMX-RP16-300 124030 EATON ELECTRIC Rating plug, 300A, IZMX16 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

+IZMX-RP16-300 124030 EATON ELECTRIC Rating plug, 300A, IZMX16

+IZMX-RP16-300

124030

EATON - MOELLER

1 Pcs.

Rating plug, 300A, IZMX16 Rate current module for adapting to changes in the basic conditions for an application. The rate current module's nominal value must be less than or equal to the basic device’s rated current. The rate current module can be replaced on site without replacing the transformer. Rate current module 200 A, 250 A and 300 A can be combined with P-trip units.

Automation > Current transformer

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller +IZMX-RP16-300 rating plug defines operating parameters and protection thresholds within industrial circuit breaker trip units. Such modules ensure that electrical protection devices correctly interpret load limits and respond appropriately to fault conditions. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Through-feed current converter
  • Rated primary current (EF007405): 300 A
  • Rated secondary current (EF007471): 0 A
  • Rated secondary apparent power (EF007470): 0 VA
  • Accuracy class (EF008842): 1
  • Calibrated (EF008836): No
  • With contact protection (EF008186): Yes
  • Opening diameter (EF005153): 0 mm
  • Snap mounting (EF007462): No
  • With copper rail (EF007380): No
  • Number of primary inputs (EF006947): 1

More info

▲
Fuse-link, low voltage, 300 A, DC 48 V, 98.42 x 27 mm
Fuse, Fuse-link, low voltage, 300 A, DC 48 V, 98.42 x 27 mm, fork-lift trucks, marine and other battery-operated systems
[

Delivery program

Product range
Fuse
Basic function
Fuse-link
Field of application
low voltage
Rated current [I]
300 A
Rated voltage
DC 48 V
Size
98.42 x 27 mm
usable for size/applications
fork-lift trucks, marine and other battery-operated systems
,

Technical data ETIM 7.0

Circuit breakers and fuses (EG000020) / Low Voltage HRC fuse (EC000055)
Electric engineering, automation, process control engineering / Electrical installation, device / Safety fuse inserts / Low-Voltage HRC fuse ([email protected] [AFZ800015])
Construction size
Other
Rated current
300 A
Rated voltage
48 V
Voltage type
DC
Voltage type
DC
Rated switching capacity
10 kA
Utilization category
Other
Type of fuse status indicator
None
Insulated metal gripping lugs (IMGL)
No
]

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
