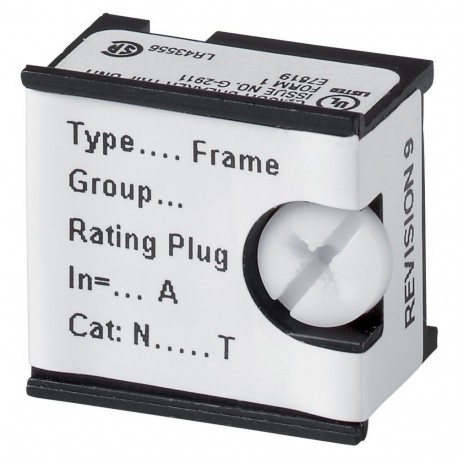

+IZMX-RP40-2000 126418 EATON ELECTRIC Rating plug, 2000A, IZMX40
+IZMX-RP40-2000
126418
EATON - MOELLER
1 Pcs.
Automation > Current transformer
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed for heavy switchgear protection, the +IZMX-RP40-2000 126418 EATON ELECTRIC Rating plug, 2000A, IZMX40 operates as a through-feed current converter configuration for high-capacity circuit breakers. Rating plugs and integrated transformers configure trip unit parameters and monitor high-ampere electrical pathways in industrial power systems.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Model (EF000010): Through-feed current converter
- Rated primary current (EF007405): 2000 A
- Rated secondary current (EF007471): 0 A
- Rated secondary apparent power (EF007470): 0 VA
- Accuracy class (EF008842): 1
- Calibrated (EF008836): No
- With contact protection (EF008186): Yes
- Opening diameter (EF005153): 0 mm
- Snap mounting (EF007462): No
- With copper rail (EF007380): No
- Number of primary inputs (EF006947): 1
More info
▲Delivery program
The rating plug’s nominal value must be less than or equal to the basic device’s rated current.
The rating plug can be replaced on site without replacing the transformer.
200 A, 250 A and 300 A rating plugs cannot be combined with P-trip units.
