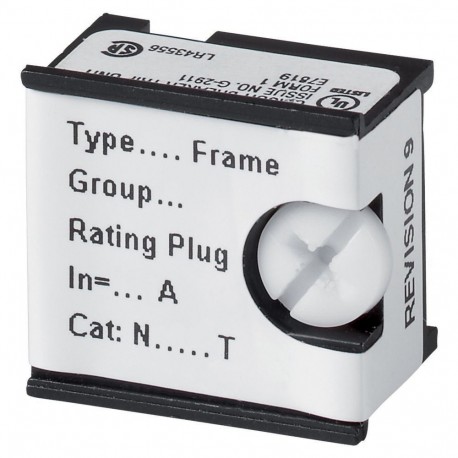

+IZMX-RP16-1250 124157 EATON ELECTRIC Rating plug, 1250A, IZMX16
+IZMX-RP16-1250
124157
EATON - MOELLER
1 Pcs.
Automation > Current transformer
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller +IZMX-RP16-1250 is a through-feed current converter and rating plug assembly used to calibrate and set trip parameters for high-capacity power circuit breakers. Technicians rely on these components to adapt switchgear protection characteristics to specific installation loads.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Model (EF000010): Through-feed current converter
- Rated primary current (EF007405): 1250 A
- Rated secondary current (EF007471): 0 A
- Rated secondary apparent power (EF007470): 0 VA
- Accuracy class (EF008842): 1
- Calibrated (EF008836): No
- With contact protection (EF008186): Yes
- Opening diameter (EF005153): 0 mm
- Snap mounting (EF007462): No
- With copper rail (EF007380): No
- Number of primary inputs (EF006947): 1
More info
▲Delivery program
The rating plug’s nominal value must be less than or equal to the basic device’s rated current.
The rating plug can be replaced on site without replacing the transformer.
200 A, 250 A and 300 A rating plugs cannot be combined with P-trip units.
