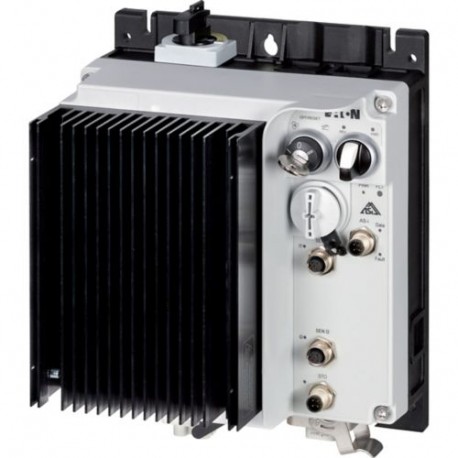

RASP5-4400A31-412R110S1 198792 Y7-198792 EATON ELECTRIC RASP5-4400A31-412R110S1
RASP5-4400A31-412R110S1
198792
Y7-198792
EATON - MOELLER
1 Pcs.
Automation > Frequency converter less than 1 kV
Rapid Link Starters
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Engineered for decentralized automation tasks, the Eaton Moeller RASP5-4400A31-412R110S1 unit acts as an integrated drive and starter combination for three-phase industrial motors. Such modular devices streamline panel layouts by mounting directly onto machinery to provide local motor control and protection.
Please note that pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Mains voltage: 380 V
- Mains frequency: 50/60 Hz
- Number of phases input: 3
- Number of phases output: 3
- Max. output frequency: 500 Hz
- Max. output voltage: 500 V
- Nominal output current I2N: 4.3 A
- Power consumption: 46 W
- Relative symmetric net frequency tolerance: 10 %
- Relative symmetric net voltage tolerance: 10 %
- Number of analogue outputs: 0
- Number of analogue inputs: 0
- Number of digital outputs: 0
- Number of digital inputs: 4
- With control element: Yes
- Application in industrial area permitted: Yes
More info
▲General specifications
RoHS
UL 61800-5-1
CE
IEC/EN 61800-5-1
Features & Functions
Parameterization: drivesConnect mobile (App)
Parameterization: drivesConnect
Parameterization: Fieldbus
Parameterization: Keypad
Key switch position AUTO
Key switch position HAND
Braking resistance
Selector switch (Positions: REV - OFF - FWD)
Thermo-click with safe isolation
PTC thermistor monitoring
Breaking resistance
Internal DC link
PC connection
Key switch position OFF/RESET
Control unit
IGBT inverter
Two sensor inputs through M12 sockets (max. 150 mA) for quick stop and interlocked manual operation
Brake chopper with braking resistance for dynamic braking
STO (Safe Torque Off)
3 fixed speeds
4-quadrant operation possible
General
IP65
AS-Interface profile cable: S-7.4 for 31 modules
C1: for conducted emissions only
AC voltage
Center-point earthed star network (TN-S network)
Ambient conditions, mechanical
Resistance: 6 Hz, Amplitude 0.15 mm
Resistance: 57 Hz, Amplitude transition frequency on acceleration
Resistance: According to IEC/EN 60068-2-6
Climatic environmental conditions
Max. 2000 m
In accordance with IEC/EN 50178
Main circuit
Adjustable, motor, main circuit
< 10 ms, Off-delay
Synchronous reluctance motors
U/f control
PM and LSPM motors
BLDC motors
At 40 °C
480 V AC, 3-phase
AC voltage
Center-point earthed star network (TN-S network)
Motor rating
Braking function
Short-circuit rating
Control circuit
Communication
Number of slave addresses: 31 (AS-Interface®)
Max. total power consumption from AS-Interface® power supply unit (30 V): 190 mA
Cable
C3 ≤ 25 m, maximum motor cable length
C2 ≤ 5 m, maximum motor cable length
