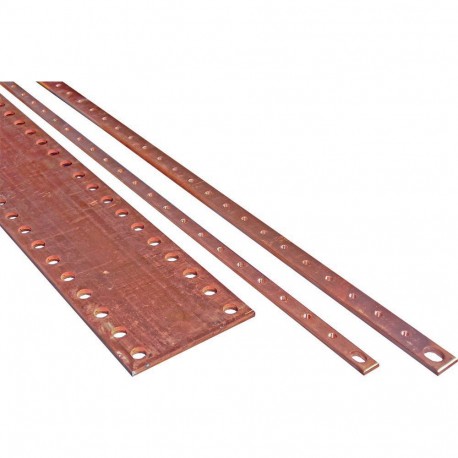

View larger
Images are for illustrative purposes only. Please refer to data sheet for details
BPZ-BB/T-20/5/2000 289865 Y7-289865 EATON ELECTRIC 289865 BPZ-BB/T-20/5/2000
BPZ-BB/T-20/5/2000
289865
Y7-289865
EATON - MOELLER
1 Pcs.
289865 BPZ-BB/T-20/5/2000
BPZ-BB/T-20/5/2000
Rail with thread M6
Service distribution system—Profi Plus (floor standing distribution board, wall-mounting/flush-mounted distribution board)
Automation > Busbar
Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲EL-Nummer (Norway)
2473259
Rail with thread M6
Service distribution system—Profi Plus (floor standing distribution board, wall-mounting/flush-mounted distribution board)
Delivery program
Product range
General switchboard accessories
Accessories
Flat copper bars
Accessories
Flat copper busbars, predrilled
Rated operational current [Ie]
274 A
Thread
M6
Dimensions
Width
20 mm
Height
5 mm
Length
2000 mm
Cu factor
1,66 kg
Technical data ETIM 7.0
Low-voltage industrial components (EG000017) / Busbar (EC001522)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Busbar trunking system (LV circuitry) / Busbar (low-voltage switching technology) ([email protected] [ACN949011])
Rated current In
274 A
Model
Flat
Length
2000 mm
Width
20 mm
Height
5 mm
Flexible
No
Surface protection
Untreated
| Feature Name | Feature Value |
|---|---|
| Rated current In (EF008250) | 274 A |
| Model (EF000010) | Flat |
| Length (EF001438) | 2000 mm |
| Width (EF000008) | 20 mm |
| Height (EF000040) | 5 mm |
| Flexible (EF000083) | No |
| Surface protection (EF000139) | Untreated |
