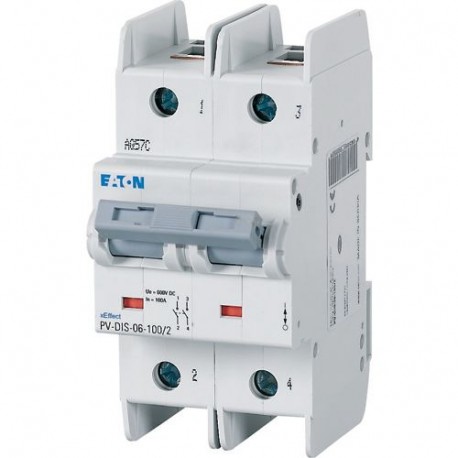

EATON - MOELLER PV-DIS-06-63/2 PV-DIS-06-63/2 179257 Y7-179257 EATON ELECTRIC Switch disconnector, DC, 600V, 63 A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PV-DIS-06-63/2 179257 Y7-179257 EATON ELECTRIC Switch disconnector, DC, 600V, 63 A

PV-DIS-06-63/2

179257

Y7-179257

EATON - MOELLER

1 Pcs.

Switch disconnector, DC, 600V, 63 A PV-DIS-06-63/2

Connectors > Switch disconnector
Modular Switchgear – Industrial

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Switch disconnector, DC, 600V, 63 A
photovoltaic disconnector, compact design, up to 1000V with only 54mm width (3TE), increased safety due to independent manual operation, stable performance at every current, polarity independent, decreased power loss due to fewer poles, DC, 600V, 63 A, IEC 60947-3 DC-PV1&2

General specifications
Product name
Eaton Distribution parts
Part no.
PV-DIS-06-63/2
EAN
4015081743445
Product Length/Depth
113 millimetre
Product height
77 millimetre
Product width
54 millimetre
Product weight
0.44 kilogram
Compliances
VDE
RoHS conform
Product Tradename
None
Product Type
Distribution parts
Product Sub Type
None
Public Consumption
Yes
Product Family Description
ES-PMCC-PDC-Eaton Distribution parts
Globally Marketable
Yes
Product Specification Details
Actuator color
Gray
Actuator type
Rocker lever
Ambient operating temperature - max
40 °C
Ambient operating temperature - min
-20 °C
Ambient operating temperature details
-20 °C - 40 °C (40 °C - 75 °C derating)
Ambient storage temperature - max
75 °C
Ambient storage temperature - min
40 °C
Application
Open areas
Residential buildings
Utility buildings
Cable material
Copper, Cu
Climatic proofing
IEC 60947-2
Contact rating at DC - max
100 %
Degree of protection
IP40 (when fitted)
IP20
Other
Degree of protection (front side)
IP20
Device construction
Built-in device fixed built-in technique
Electrical connection type of main circuit
Frame clamp
Features
Version as maintenance-/service switch
Functions
Voltage release optional
Isolation
Safe electrical isolation
Mounting position
As required
Number of auxiliary contacts (change-over contacts)
0
Number of auxiliary contacts (normally closed contacts)
0
Number of auxiliary contacts (normally open contacts)
0
Number of poles
Two-pole
Number of switches
1
Power rating at AC-23, 400 V
0 kW
Power rating at AC-3, 400 V
0 kW
Rated conditional short-circuit current (Iq)
0 kA
Rated impulse withstand voltage (Uimp)
4 kV
Rated insulation voltage (Ui)
630 V
Rated operating voltage (Ue) - max
1000 V
Rated operating voltage (Ue) - min
600 V
Rated operating voltage (Ue) at AC - max
0 V
Rated permanent current at AC-21, 400 V
0 A
Rated permanent current at AC-23, 400 V
0 A
Rated short-time withstand current (Icw)
756 kA
Rated uninterrupted current (Iu)
0 A
Shock resistance
IEC 60947-2
Special features
Ambient temperature hint: Maximum operating temperature is 75 °C in accordance with the de-rating table
Mechanical and electrical operations acc. to IEC 60947-3. Category of utilization DC-PV2 or DC-PV1
String protection of the PV generator
Suitable for
Distribution board installation
Switching power at 400 V
0 kW
Terminal dimensions
2.5 mm² - 50 mm²
Type
Photovoltaik switch-disconnector
Utilization category
DC-PV (EN 60947-3)
Voltage rating
600 V

Technical data ETIM 9.0

Low-voltage industrial components (EG000017) / Switch disconnector (low voltage) (EC000216)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Off-load switch, circuit breaker, control switch / Switch disconnector (ecl@ss13-27-37-14-03 [AKF060018])
Version as main switch
No
Version as maintenance-/service switch
Yes
Version as safety switch
No
Version as emergency stop installation
No
Version as reversing switch
No
Number of switches
1
Max. rated operation voltage Ue AC
0 V
Rated operating voltage
600 - 1000 V
Rated permanent current Iu
0 A
Rated permanent current at AC-23, 400 V
0 A
Rated permanent current at AC-21, 400 V
0 A
Rated operation power at AC-3, 400 V
0 kW
Rated short-time withstand current lcw
756 kA
Rated operation power at AC-23, 400 V
0 kW
Switching power at 400 V
0 kW
Conditioned rated short-circuit current Iq
0 kA
Number of poles
2
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
0
Motor drive optional
No
Motor drive integrated
No
Voltage release optional
Yes
Device construction
Built-in device fixed built-in technique
Suitable for floor mounting
No
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
No
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
No
Colour control element
Grey
Type of control element
Rocker lever
Interlockable
No
Type of electrical connection of main circuit
Frame clamp
With pre-assembled cabling
No
Degree of protection (IP), front side
IP20
Degree of protection (NEMA)
Other
Width
54 mm
Height
77 mm
Depth
113 mm
Width in number of modular spacings

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
