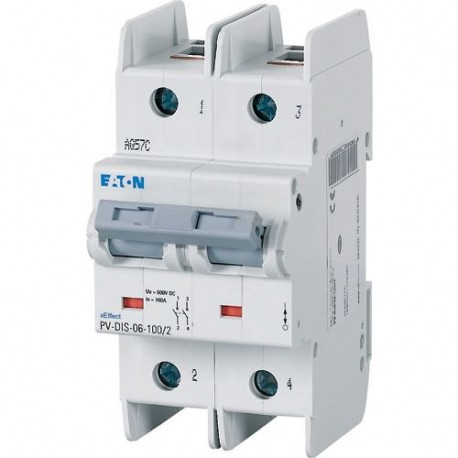

EATON - MOELLER PV-DIS-06-32/2 PV-DIS-06-32/2 179256 Y7-179256 EATON ELECTRIC Switch disconnector, DC, 600V, 32 A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PV-DIS-06-32/2 179256 Y7-179256 EATON ELECTRIC Switch disconnector, DC, 600V, 32 A

PV-DIS-06-32/2

179256

Y7-179256

EATON - MOELLER

1 Pcs.

Switch disconnector, DC, 600V, 32 A PV-DIS-06-32/2 Eaton Distribution parts. Switch disconnector, DC, 600V, 32 A photovoltaic disconnector, compact design, up to 1000V with only 54mm width (3TE), increased safety due to independent manual operation, stable performance at every current, polarity independent, decreased power loss due to fewer poles, DC, 600V, 32 A, IEC 60947-3 DC-PV1&2

Connectors > Switch disconnector
Modular Switchgear – Industrial

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller direct current switch-disconnector is specifically built to safely interrupt photovoltaic and other high-voltage DC circuits during maintenance. These specialized disconnectors handle the unique arcing challenges of direct current in renewable energy installations.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 0 V
  • Rated operating voltage (EF001435): 600 V
  • Rated permanent current Iu (EF001389): 0 A
  • Rated permanent current at AC-23, 400 V (EF011777): 0 A
  • Rated permanent current at AC-21, 400 V (EF009165): 0 A
  • Rated operation power at AC-3, 400 V (EF001364): 0 kW
  • Rated short-time withstand current lcw (EF007050): 384 kA
  • Rated operation power at AC-23, 400 V (EF007027): 0 kW
  • Switching power at 400 V (EF009166): 0 kW
  • Conditioned rated short-circuit current Iq (EF001444): 0 kA

More info

▲

General specifications

Product Name
Eaton Distribution parts
Catalog Number
179256
Model Code
PV-DIS-06-32/2
EAN
4015081743438
Product Length/Depth
113 mm
Product Height
77 mm
Product Width
54 mm
Product Weight
0.44 kg
Compliances
VDE
RoHS conform

Product specifications

Special features
Type
Photovoltaik switch-disconnector
Features
Version as maintenance-/service switch
Actuator color
Gray
Climatic proofing
IEC 60947-2
Actuator type
Rocker lever
Ambient operating temperature - max
40 °C
Ambient operating temperature - min
-20 °C
Ambient operating temperature details
-20 °C - 40 °C (40 °C - 75 °C derating)
Ambient storage temperature - max
75 °C
Ambient storage temperature - min
40 °C
Application
  • Open areas
  • Residential buildings
  • Utility buildings
Number of auxiliary contacts (change-over contacts)
0
Number of auxiliary contacts (normally closed contacts)
0
Number of auxiliary contacts (normally open contacts)
0
Number of poles
Two-pole
Power rating at AC-23, 400 V
0 kW
Power rating at AC-3, 400 V
0 kW
Rated insulation voltage (Ui)
630 V
Rated operating voltage (Ue) - max
1000 V
Rated operating voltage (Ue) - min
600 V
Rated operating voltage (Ue) at AC - max
0 V
Rated permanent current at AC-21, 400 V
0 A
Rated permanent current at AC-23, 400 V
0 A
Rated uninterrupted current (Iu)
0 A
Switching power at 400 V
0 kW
Voltage rating
600 V
Rated impulse withstand voltage (Uimp)
4 kV
Utilization category
DC-PV (EN 60947-3)
Isolation
Safe electrical isolation
Cable material
Copper, Cu
Device construction
Built-in device fixed built-in technique
Rated short-time withstand current (Icw)
384 kA
Electrical connection type of main circuit
Frame clamp
Contact rating at DC - max
100 %
Mounting position
As required
Rated conditional short-circuit current (Iq)
0 kA
Degree of protection
Other
IP40 (when fitted)
IP20
Degree of protection (front side)
IP20
Suitable for
Distribution board installation
Functions
Voltage release optional
Number of switches
1
Shock resistance
IEC 60947-2
Terminal dimensions
2.5 mm² - 50 mm²
Width in number of modular spacings
3

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
