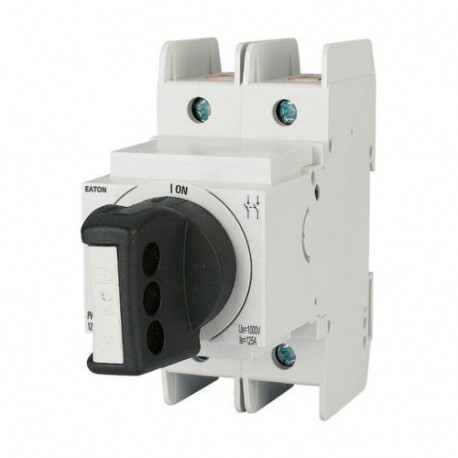

PV-DIS-06-100/2-ROT 185503 Y7-185503 EATON ELECTRIC Switch disconnector, DC, 600V, 100 A, rotary handle
PV-DIS-06-100/2-ROT
185503
Y7-185503
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Modular Switchgear – Industrial
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Eaton Moeller PV-DIS-06-100/2-ROT functions as a specialized switch disconnector engineered for direct current environments. Such devices are widely deployed in photovoltaic and renewable energy systems to securely disconnect DC circuits during maintenance cycles.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): No
- Version as maintenance-/service switch (EF006986): Yes
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): No
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Max. rated operation voltage Ue AC (EF007355): 0 V
- Rated operating voltage (EF001435): 600 V
- Rated permanent current Iu (EF001389): 0 A
- Rated permanent current at AC-23, 400 V (EF011777): 0 A
- Rated permanent current at AC-21, 400 V (EF009165): 0 A
- Rated operation power at AC-3, 400 V (EF001364): 0 kW
- Rated short-time withstand current lcw (EF007050): 1200 kA
- Rated operation power at AC-23, 400 V (EF007027): 0 kW
- Switching power at 400 V (EF009166): 0 kW
- Conditioned rated short-circuit current Iq (EF001444): 0 kA
More info
▲General specifications
RoHS conform
Product specifications
- Open areas
- Residential buildings
- Utility buildings
Other
IP20
Interlockable
