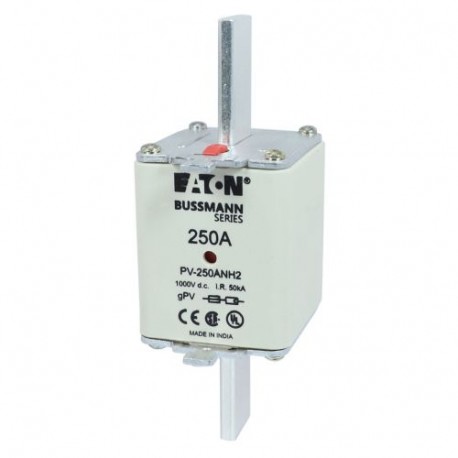

EATON - MOELLER PV-250ANH2 PV-250ANH2 EATON ELECTRIC cartridge fuse, ultra rapid, 250 a, DC 1000 V, NH2, gPV, UL PV, UL, IEC, indicator.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PV-250ANH2 EATON ELECTRIC cartridge fuse, ultra rapid, 250 a, DC 1000 V, NH2, gPV, UL PV, UL, IEC, indicator..

PV-250ANH2

PV250ANH2

EATON - MOELLER

3 Pcs.

FUSE 250A 1000V DC PV SIZE 2 DUAL IND Fuse-link, high speed, 250 A, DC 1000 V, NH2, gPV, UL PV, UL, IEC, dual indicator

Automation > Low Voltage HRC fuse
Bussmann Series High speed fuses

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A cartridge fuse like the Eaton Moeller PV-250ANH2 delivers specialized ultra-rapid protection for high-voltage DC photovoltaic installations and solar energy combiner networks. These robust units are built to handle the distinct fault characteristics and sustained DC loads found in renewable energy generation sites. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Fuse construction type according to IEC 60269 (EF015865): NH2
  • Voltage type (EF000187): DC
  • Rated current (EF000227): 250 A
  • Rated voltage DC (EF012281): 1000 V
  • Rated switching capacity DC (EF017699): 50 kA
  • Utilization category according to IEC 60269 (EF002572): gPV (photovoltaic protection)
  • Type of fuse status indicator (EF004473): Combination fuse status indicator
  • Insulated metal gripping lugs (IMGL) (EF012538): No
  • Power loss at rated current (EF012389): 38 W

More info

▲

General specifications

Product Name
Eaton Bussmann series photovoltaic fuses
Catalog Number
PV-250ANH2
Model Code
FUSE 250A 1000V DC PV SIZE 2 DUAL IND
EAN
5027590505871
UPC
051712497978
Product Length/Depth
137 mm
Product Height
68 mm
Product Width
134 mm
Product Weight
434 g
Compliances
CE Marked
RoHS Compliant
Certifications
IEC 60269
UL Listed
CSA Certified

Electrical rating

Amperage Rating
250 A
Interrupt rating
50 kAIC
Voltage rating
1000 Vdc
Watt losses
38 W

Physical details

Color
White
Fuse type
PV-ANH2
Material
Ceramic body

Compatible fuse holder

Suitable for
SD2-D-PV NH Fuse base

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
