Q18D-GE 086417 Y7-86417 EATON ELECTRIC Pushbutton, yellow, momentary
Q18D-GE
086417
Y7-86417
EATON - MOELLER
1 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

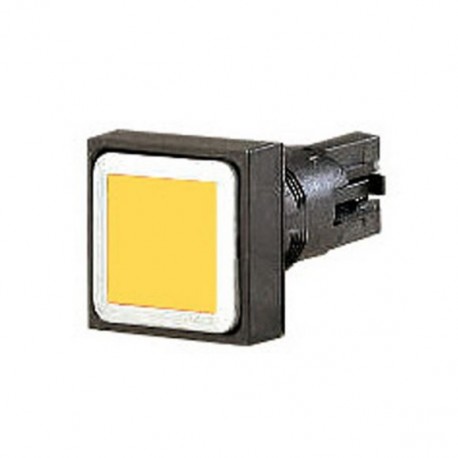

The Eaton Moeller Q18D-GE Pushbutton, yellow, momentary is an electromechanical control device designed for integration into industrial machinery and automation switchboards. Operators rely on these interface units to initiate manual inputs, control auxiliary functions, or trigger safety routines within automated processes. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): Yellow
- Number of command positions (EF001372): 1
- Construction type lens (EF006253): Square
- Hole diameter (EF000079): 16 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): Flat
- Suitable for lighting (EF001142): No
- With protective cover (EF005500): No
- Labelled (EF001537): No
- Switching function latching (EF007447): No
- Spring-return (EF001407): Yes
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Degree of protection (IP), front side (EF003118): IP65
More info
▲General specifications
CSA File No.: 46552
UL 508
UL
CSA
IEC/EN 60947-5
CSA-C22.2 No. 14-05
IEC/EN 60947
CE
UL File No.: E29184
CSA Class No.: 3211-03
VDE 0660
Features & Functions
General
NEMA 1
IP65
Ambient conditions, mechanical
40 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Actuator
Momentary
