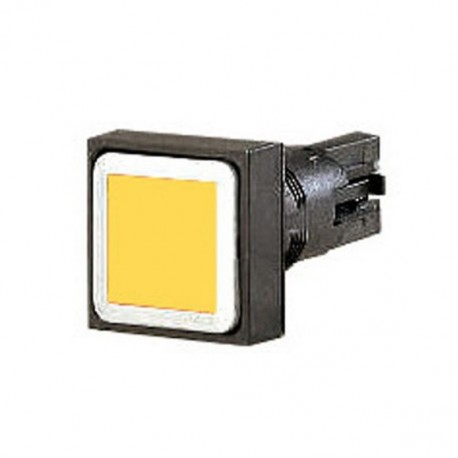

Q18DR-GE 090482 Y7-90482 EATON ELECTRIC Pushbutton, yellow, maintained
Q18DR-GE
090482
Y7-90482
EATON - MOELLER
1 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller Q18DR-GE pushbutton is a small-format, maintained control device designed to fit 16 mm mounting holes on compact operator panels and machine interfaces. Maintained switching maintains contact state changes until a subsequent manual operation resets the switch.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): Yellow
- Number of command positions (EF001372): 1
- Construction type lens (EF006253): Square
- Hole diameter (EF000079): 16 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): Flat
- Suitable for lighting (EF001142): No
- With protective cover (EF005500): No
- Labelled (EF001537): No
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Degree of protection (IP), front side (EF003118): IP65
More info
▲General specifications
UL File No.: E29184
CSA File No.: 46552
CSA Class No.: 3211-03
IEC/EN 60947
CSA
VDE 0660
UL
UL Category Control No.: NKCR
CSA-C22.2 No. 14-05
IEC/EN 60947-5
UL 508
Features & Functions
General
NEMA 1
NEMA 1
2.8 x 0.8 mm to DIN 46244, Blade terminal
Ambient conditions, mechanical
40 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Actuator
Maintained
