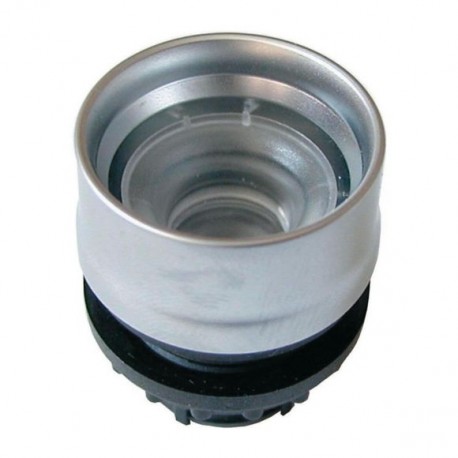

EATON - MOELLER M22-DG-X M22-DG-X 220921 Y7-220921 EATON ELECTRIC Pushbutton, without button plate, protected View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-DG-X 220921 Y7-220921 EATON ELECTRIC Pushbutton, without button plate, protected

M22-DG-X

220921

Y7-220921

EATON - MOELLER

5 Pcs.

Pushbutton, without button plate, protected M22-DG-X Eaton Moeller® series M22 Pushbutton, RMQ-Titan, Guard-ring, momentary, Without button plate, Bezel: titanium Pushbutton, Product range: RMQ-Titan, Single unit, Design: Guard-ring, momentary, button plate: Without button plate, Degree of Protection: IP66, IP67, IP69K, Bezel: titanium, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 22 x 22, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for push button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller M22-DG-X pushbutton is a standard control operator designed to accept modular button plates for manual switching tasks in industrial control circuits. Technicians install these devices within machinery enclosures and operator stations to facilitate user input.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour button (EF000190): Without button plate
  • Number of command positions (EF001372): 1
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Type of button (EF001546): Flat
  • Suitable for lighting (EF001142): No
  • With protective cover (EF005500): No
  • Labelled (EF001537): No
  • Switching function latching (EF007447): No
  • Spring-return (EF001407): Yes
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Chrome
  • Degree of protection (IP), front side (EF003118): IP67/IP69K

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Pushbutton
Catalog Number
220921
Model Code
M22-DG-X
EAN
4015082209216
Product Length/Depth
30 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.013 kg
Compliances
CE Marked
Certifications
EN 60947-5
UL 508
CSA Std. C22.2 No. 14-05
IEC 60947-5
CSA Std. C22.2 No. 94-91
VDE
CE
UL File No.: E29184
VDE 0660
CSA-C22.2 No. 94-91
UL Category Control No.: NKCR
CSA
CSA File No.: 012528
IEC/EN 60947-5
CSA-C22.2 No. 14-05
IEC/EN 60947
CSA Class No.: 3211-03
UL
DNV
GL
LR
