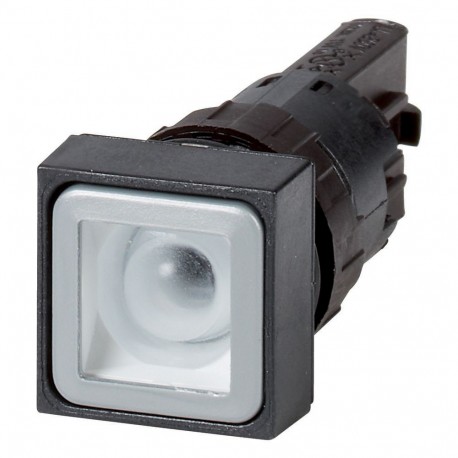

Q25D-X 093624 Y7-93624 EATON ELECTRIC Pushbutton, without button plate, momentary
Q25D-X
093624
Y7-93624
EATON - MOELLER
10 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller Q25D-X pushbutton without button plate gives panel builders a modular foundation to assemble custom operator controls for specialized industrial machinery and electrical distribution systems. These units accept various interchangeable caps for distinct application needs. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): Without button plate
- Number of command positions (EF001372): 1
- Construction type lens (EF006253): Square
- Hole diameter (EF000079): 16 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): Flat
- Suitable for lighting (EF001142): No
- With protective cover (EF005500): No
- Labelled (EF001537): No
- Switching function latching (EF007447): No
- Spring-return (EF001407): Yes
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Degree of protection (IP), front side (EF003118): IP65
More info
▲General specifications
UL
IEC/EN 60947
UL Category Control No.: NKCR
CE
UL 508
CSA Class No.: 3211-03
CSA-C22.2 No. 14-05
IEC/EN 60947-5
CSA
VDE 0660
UL File No.: E29184
Features & Functions
General
IP65
IP65
Ambient conditions, mechanical
Mechanical, According to IEC/EN 60068-2-27
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
Actuator
Momentary
