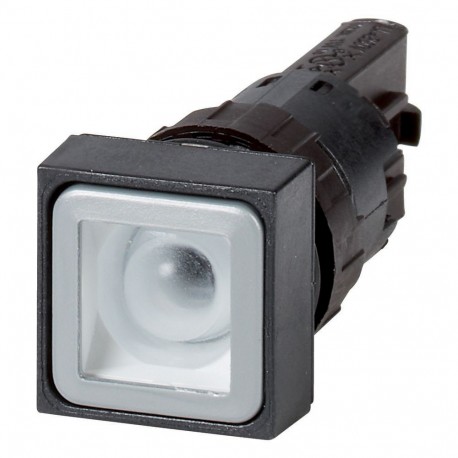

Q25DR-X 093626 Y7-93626 EATON ELECTRIC Pushbutton, without button plate, maintained
Q25DR-X
093626
Y7-93626
EATON - MOELLER
1 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller Q25DR-X pushbutton without button plate is a versatile actuator base designed to accept custom labeling inserts for specific industrial control requirements. Panel builders utilize modular switch components to tailor operator interfaces precisely to the specifications of factory automation systems. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): Without button plate
- Number of command positions (EF001372): 1
- Construction type lens (EF006253): Square
- Hole diameter (EF000079): 16 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): Flat
- Suitable for lighting (EF001142): No
- With protective cover (EF005500): No
- Labelled (EF001537): No
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Degree of protection (IP), front side (EF003118): IP65
More info
▲General specifications
CSA-C22.2 No. 14-05
IEC/EN 60947-5
VDE 0660
UL Category Control No.: NKCR
CSA File No.: 46552
CSA Class No.: 3211-03
IEC/EN 60947
UL
CSA
UL File No.: E29184
CE
Features & Functions
General
NEMA 1
IP65
2.8 x 0.8 mm to DIN 46247 and IEC 60760, Fast-on connectors
Ambient conditions, mechanical
Mechanical, According to IEC/EN 60068-2-27
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Actuator
Switching function latching
