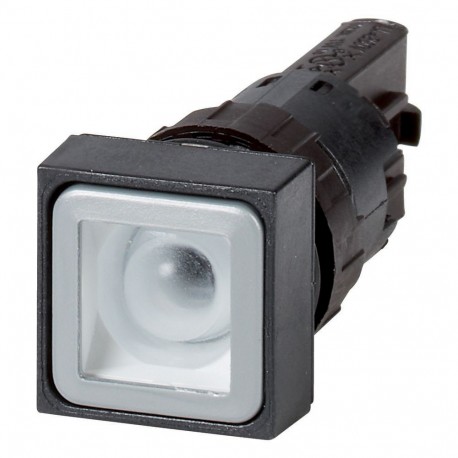

Q18DR-X 093625 Y7-93625 EATON ELECTRIC Pushbutton, without button plate, maintained
Q18DR-X
093625
Y7-93625
EATON - MOELLER
1 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller Q18DR-X is a maintained square pushbutton actuator supplied without a button plate, allowing custom configuration for specialized control panels. Panel builders use modular actuator bases to tailor operator interfaces to specific project requirements.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): Without button plate
- Number of command positions (EF001372): 1
- Construction type lens (EF006253): Square
- Hole diameter (EF000079): 16 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): Flat
- Suitable for lighting (EF001142): No
- With protective cover (EF005500): No
- Labelled (EF001537): No
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Degree of protection (IP), front side (EF003118): IP65
More info
▲General specifications
IEC/EN 60947-5
CSA
VDE 0660
UL 508
CSA File No.: 46552
CE
UL
CSA Class No.: 3211-03
CSA-C22.2 No. 14-05
UL Category Control No.: NKCR
UL File No.: E29184
Features & Functions
General
NEMA 1
NEMA 1
2.8 x 0.8 mm to DIN 46247 and IEC 60760, Fast-on connectors
Ambient conditions, mechanical
Mechanical, According to IEC/EN 60068-2-27
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Actuator
Switching function latching
