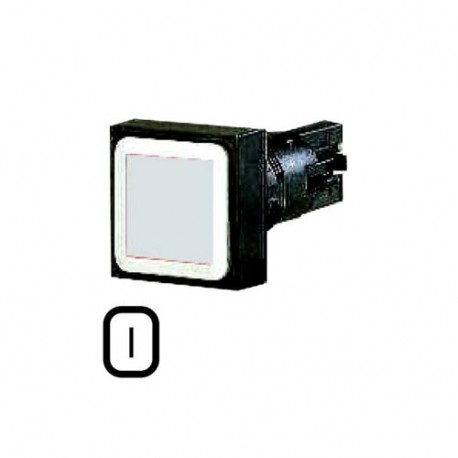

Q18DR-WS 086243 Y7-86243 EATON ELECTRIC Pushbutton, white, maintained
Q18DR-WS
086243
Y7-86243
EATON - MOELLER
1 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller pushbutton, white, maintained (part number Q18DR-WS) provides a latching operator interface that maintains its physical and electrical state until manually reset or toggled again. Maintained pushbuttons are frequently utilized in industrial automation for power-on/off toggles or continuous mode selection.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): White
- Number of command positions (EF001372): 1
- Construction type lens (EF006253): Square
- Hole diameter (EF000079): 16 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): Flat
- Suitable for lighting (EF001142): No
- With protective cover (EF005500): No
- Labelled (EF001537): No
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Degree of protection (IP), front side (EF003118): IP65
More info
▲General specifications
UL File No.: E29184
CSA
VDE 0660
CE
CSA Class No.: 3211-03
IEC/EN 60947
IEC/EN 60947-5
UL
CSA File No.: 46552
UL Category Control No.: NKCR
CSA-C22.2 No. 14-05
Features & Functions
General
NEMA 1
IP65
2.8 x 0.8 mm to DIN 46247 and IEC 60760, Fast-on connectors
Ambient conditions, mechanical
Mechanical, According to IEC/EN 60068-2-27
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
Actuator
Maintained
