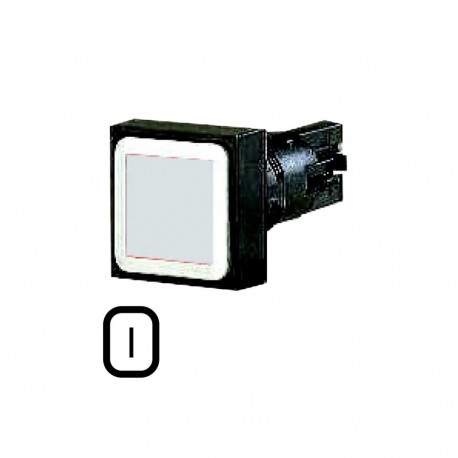

Q18D-20 054041 Y7-54041 EATON ELECTRIC Pushbutton, white I, momentary
Q18D-20
054041
Y7-54041
EATON - MOELLER
1 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Q18D-20 054041 Y7-54041 EATON ELECTRIC Pushbutton, white I, momentary is a square-profile momentary pushbutton supplied by Eaton Moeller for machine control desks and electrical enclosures. Such devices allow operators to manually trigger brief operational sequences or input control signals into industrial automation systems. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): Black
- Number of command positions (EF001372): 1
- Construction type lens (EF006253): Square
- Hole diameter (EF000079): 16 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): Flat
- Suitable for lighting (EF001142): No
- With protective cover (EF005500): No
- Labelled (EF001537): Yes
- Switching function latching (EF007447): No
- Spring-return (EF001407): Yes
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Degree of protection (IP), front side (EF003118): IP65
More info
▲General specifications
UL File No.: E29184
CSA File No.: 46552
IEC/EN 60947-5
VDE 0660
IEC/EN 60947
UL 508
CSA Class No.: 3211-03
CSA-C22.2 No. 14-05
UL
UL Category Control No.: NKCR
CSA
Features & Functions
General
NEMA 1
NEMA 1
Ambient conditions, mechanical
40 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Actuator
Momentary
