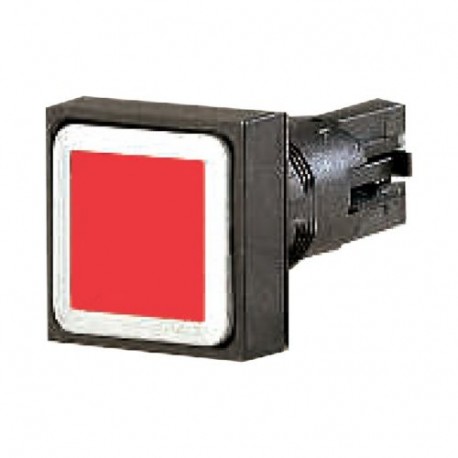

Q25DR-RT 088627 Y7-88627 EATON ELECTRIC Pushbutton, red, maintained
Q25DR-RT
088627
Y7-88627
EATON - MOELLER
1 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller Q25DR-RT is a maintained pushbutton designed for installation in electrical distribution assemblies and control panels. Latching pushbuttons maintain their switched state until manually reset, making them suitable for stop functions or alternative operational modes. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): Red
- Number of command positions (EF001372): 1
- Construction type lens (EF006253): Square
- Hole diameter (EF000079): 16 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): Flat
- Suitable for lighting (EF001142): No
- With protective cover (EF005500): No
- Labelled (EF001537): No
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Degree of protection (IP), front side (EF003118): IP65
More info
▲General specifications
CSA-C22.2 No. 14-05
CE
CSA Class No.: 3211-03
CSA File No.: 46552
UL Category Control No.: NKCR
IEC/EN 60947-5
IEC/EN 60947
CSA
UL 508
UL File No.: E29184
UL
Features & Functions
General
IP65
IP65
2.8 x 0.8 mm to DIN 46247 and IEC 60760, Fast-on connectors
Ambient conditions, mechanical
40 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Actuator
Switching function latching
