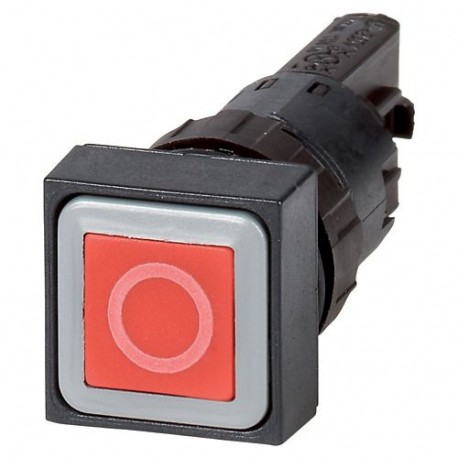

Q25D-10 090421 Y7-90421 EATON ELECTRIC Pushbutton, red 0, momentary
Q25D-10
090421
Y7-90421
EATON - MOELLER
10 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Eaton Moeller Q25D-10 square pushbutton actuator serves as a standard control element in industrial environments, offering operators a labelled momentary interface to manage specific machine functions. Such devices are commonly integrated into compact control panels, operator stations, and distribution enclosures.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): Red
- Number of command positions (EF001372): 1
- Construction type lens (EF006253): Square
- Hole diameter (EF000079): 16 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): Flat
- Suitable for lighting (EF001142): No
- With protective cover (EF005500): No
- Labelled (EF001537): Yes
- Switching function latching (EF007447): No
- Spring-return (EF001407): Yes
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Degree of protection (IP), front side (EF003118): IP65
More info
▲General specifications
CE
VDE 0660
CSA-C22.2 No. 14-05
CSA File No.: 46552
UL
CSA
UL File No.: E29184
CSA Class No.: 3211-03
UL 508
IEC/EN 60947
UL Category Control No.: NKCR
Features & Functions
General
NEMA 1
NEMA 1
Ambient conditions, mechanical
40 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
Actuator
Spring-return
