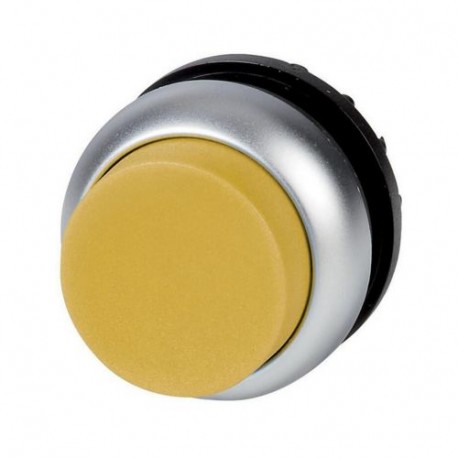

M22-DH-Y 216646 Y7-216646 EATON ELECTRIC Pushbutton, raised, yellow, momentary
M22-DH-Y
216646
Y7-216646
EATON - MOELLER
5 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This Eaton Moeller M22-DH-Y raised yellow pushbutton facilitates direct momentary control inputs on industrial control desks, machinery, and electrical enclosures. Manual control devices are widely adopted to enable secure operator commands across automated industrial systems.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Colour button: Yellow
- Number of command positions: 1
- Construction type lens: Round
- Hole diameter: 22.5 mm
- Width opening: 0 mm
- Height opening: 0 mm
- Type of button: High
- Suitable for lighting: No
- With protective cover: No
- Labelled: No
- Switching function latching: No
- Spring-return: Yes
- With front ring: Yes
- Material front ring: Plastic
- Colour front ring: Chrome
- Degree of protection (IP), front side: IP67/IP69K
More info
▲General specifications
IEC 60947-5
CSA Std. C22.2 No. 94-91
EN 60947-5
CSA Std. C22.2 No. 14-05
VDE
CE
CSA
CSA Class No.: 3211-03
CSA File No.: 012528
CSA-C22.2 No. 14-05
UL
UL Category Control No.: NKCR
CSA-C22.2 No. 94-91
IEC/EN 60947
IEC/EN 60947-5
UL File No.: E29184
VDE 0660
DNV
GL
LR
Features & Functions
Classical
General
IP69K
NEMA 12
IP66
IP67
NEMA 3R
NEMA 13
NEMA 4X
Ambient conditions, mechanical
Mechanical, According to IEC/EN 60068-2-27
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Communication
With SWD-RMQ connections
Actuator
Momentary
