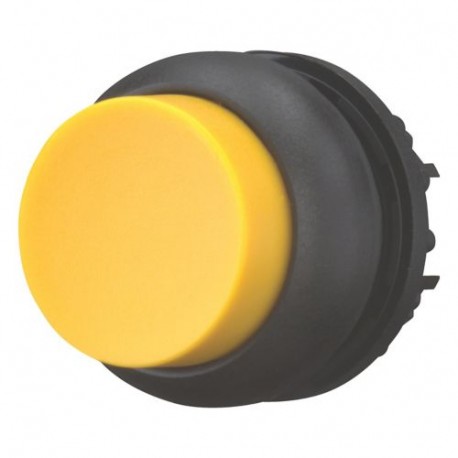

M22S-DRH-Y 216672 Y7-216672 EATON ELECTRIC Pushbutton, raised, yellow, maintained
M22S-DRH-Y
216672
Y7-216672
EATON - MOELLER
1 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Electric pushbutton, raised, yellow, maintained (M22S-DRH-Y) is designed for machine control panels to provide operators with a raised, easily tactile interface for maintaining persistent signal states. This type of operator securely holds its switched position until manually reset, serving critical functions in industrial automation.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): Yellow
- Number of command positions (EF001372): 1
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): High
- Suitable for lighting (EF001142): No
- With protective cover (EF005500): No
- Labelled (EF001537): No
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Degree of protection (IP), front side (EF003118): IP67/IP69K
More info
▲General specifications
CSA
CSA-C22.2 No. 94-91
UL 508
UL Category Control No.: NKCR
IEC/EN 60947-5
UL
CE
UL File No.: E29184
CSA-C22.2 No. 14-05
CSA File No.: 012528
IEC/EN 60947
CSA Class No.: 3211-03
DNV
GL
LR
Product specifications
Switching function latching
Damp heat, cyclic, to IEC 60068-2-30
Yes
Mechanical, According to IEC/EN 60068-2-27
Classical
IP67
NEMA 13
NEMA 3R
NEMA 12
IP69K
IP66
IP67/IP69K
