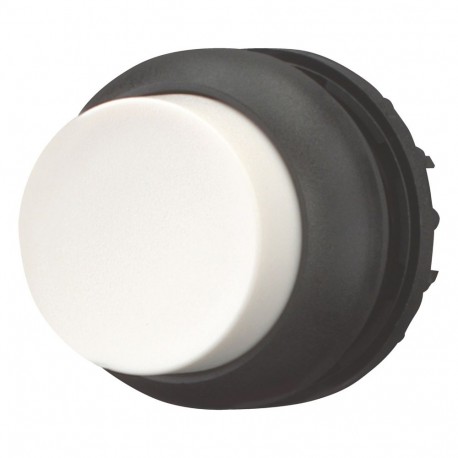

M22S-DH-W 216639 Y7-216639 EATON ELECTRIC Pushbutton, raised, white, momentary
M22S-DH-W
216639
Y7-216639
EATON - MOELLER
1 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller M22S-DH-W is a raised white momentary pushbutton designed for ergonomic control panel operation in manufacturing plants. Raised actuators provide distinct tactile feedback, helping operators trigger specific machine actions without hesitation. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): White
- Number of command positions (EF001372): 1
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): High
- Suitable for lighting (EF001142): No
- With protective cover (EF005500): No
- Labelled (EF001537): No
- Switching function latching (EF007447): No
- Spring-return (EF001407): Yes
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Degree of protection (IP), front side (EF003118): IP67/IP69K
More info
▲General specifications
CE
UL File No.: E29184
CSA-C22.2 No. 94-91
CSA Class No.: 3211-03
VDE 0660
CSA File No.: 012528
IEC/EN 60947-5
UL Category Control No.: NKCR
UL 508
CSA-C22.2 No. 14-05
IEC/EN 60947
UL
DNV
GL
LR
