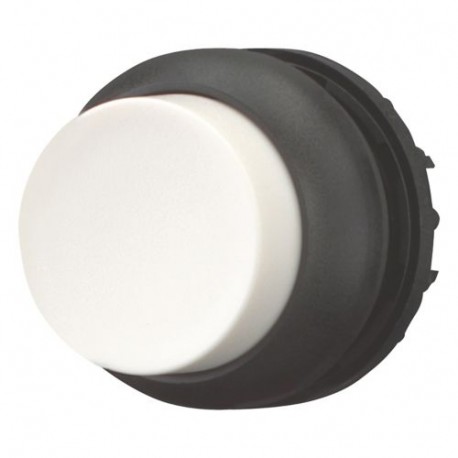

M22S-DRH-W 216666 Y7-216666 EATON ELECTRIC Pushbutton, raised, white, maintained
M22S-DRH-W
216666
Y7-216666
EATON - MOELLER
1 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A maintained pushbutton provides operators with a reliable way to toggle sustained machine states or power circuits on industrial panels. This Eaton Moeller M22S-DRH-W component features an elevated actuator design suited for prominent placement on control consoles.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): White
- Number of command positions (EF001372): 1
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): High
- Suitable for lighting (EF001142): No
- With protective cover (EF005500): No
- Labelled (EF001537): No
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Degree of protection (IP), front side (EF003118): IP67/IP69K
More info
▲General specifications
UL 508
UL Category Control No.: NKCR
CSA-C22.2 No. 94-91
CSA-C22.2 No. 14-05
IEC/EN 60947-5
VDE 0660
UL
CE
UL File No.: E29184
CSA
CSA File No.: 012528
IEC/EN 60947
DNV
GL
LR
Features & Functions
Classical
General
NEMA 4X
NEMA 12
IP67
NEMA 13
NEMA 3R
IP69K
NEMA 4X
Ambient conditions, mechanical
Mechanical, According to IEC/EN 60068-2-27
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Communication
With SWD-RMQ connections
Actuator
Switching function latching
