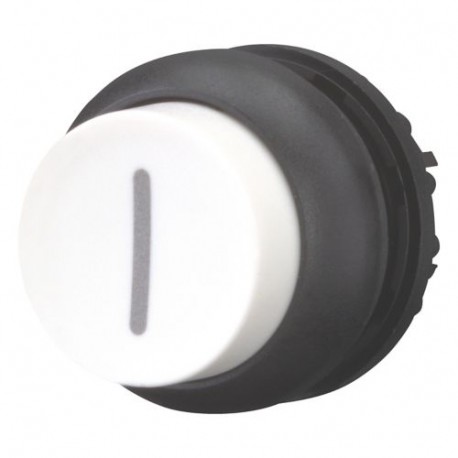

M22S-DH-W-X1 216662 Y7-216662 EATON ELECTRIC Pushbutton, raised, white I, momentary
M22S-DH-W-X1
216662
Y7-216662
EATON - MOELLER
1 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Eaton Moeller M22S-DH-W-X1 216662 Y7-216662 EATON ELECTRIC Pushbutton, raised, white I, momentary is a high-profile operator control device designed with clear labeling for industrial switching applications. Raised actuators provide enhanced visibility and ease of operation on control panels.
Exact pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): White
- Number of command positions (EF001372): 1
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): High
- Suitable for lighting (EF001142): No
- With protective cover (EF005500): No
- Labelled (EF001537): Yes
- Switching function latching (EF007447): No
- Spring-return (EF001407): Yes
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Degree of protection (IP), front side (EF003118): IP67/IP69K
More info
▲General specifications
IEC/EN 60947
IEC/EN 60947-5
CSA-C22.2 No. 94-91
UL Category Control No.: NKCR
UL 508
VDE 0660
CE
CSA Class No.: 3211-03
CSA File No.: 012528
CSA-C22.2 No. 14-05
UL
UL File No.: E29184
DNV
GL
LR
Features & Functions
Classical
General
IP66
NEMA 4X
IP67
NEMA 12
IP69K
NEMA 13
NEMA 4X
Ambient conditions, mechanical
Mechanical, According to IEC/EN 60068-2-27
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Communication
With SWD-RMQ connections
Actuator
Spring-return
