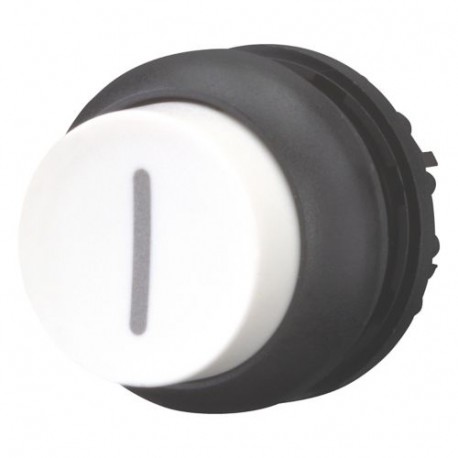

EATON - MOELLER M22S-DRH-W-X1 M22S-DRH-W-X1 216682 Y7-216682 EATON ELECTRIC Pushbutton, raised, white I, maintained View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22S-DRH-W-X1 216682 Y7-216682 EATON ELECTRIC Pushbutton, raised, white I, maintained

M22S-DRH-W-X1

216682

Y7-216682

EATON - MOELLER

1 Pcs.

Pushbutton, raised, white I, maintained M22S-DRH-W-X1 Eaton Moeller® series M22 Pushbutton, RMQ-Titan, Extended, maintained, White, inscribed, Bezel: black Pushbutton, Product range: RMQ-Titan, Single unit, Design: Extended, maintained, button plate: White, Button plate inscribed, Degree of Protection: IP66, IP67, IP69K, Bezel: black, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 22 x 22, Instructions: Stay-put/spring-return function can be changed on device, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for push button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller M22S-DRH-W-X1 is a raised white maintained pushbutton marked with the I symbol for industrial control systems. Maintained pushbuttons lock in their actuated position to sustain electrical signals until manually reset by an operator. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Colour button (EF000190): White
  • Number of command positions (EF001372): 1
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Type of button (EF001546): High
  • Suitable for lighting (EF001142): No
  • With protective cover (EF005500): No
  • Labelled (EF001537): Yes
  • Switching function latching (EF007447): Yes
  • Spring-return (EF001407): No
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Black
  • Degree of protection (IP), front side (EF003118): IP67/IP69K

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Pushbutton
Catalog Number
216682
Model Code
M22S-DRH-W-X1
EAN
4015082166823
Product Length/Depth
30 mm
Product Height
35 mm
Product Width
30 mm
Product Weight
0.013 kg
Certifications
CSA Class No.: 3211-03
IEC/EN 60947-5
CE
VDE 0660
CSA File No.: 012528
UL
CSA
UL 508
UL File No.: E29184
CSA-C22.2 No. 94-91
UL Category Control No.: NKCR
CSA-C22.2 No. 14-05
IEC/EN 60947
DNV
GL
LR

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
