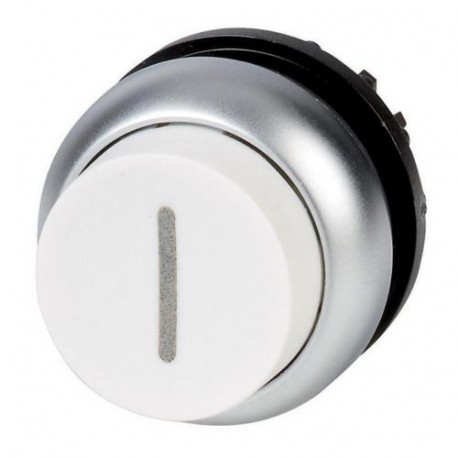

M22-DRH-W-X1 216681 Y7-216681 EATON ELECTRIC Pushbutton, raised, white I, maintained
M22-DRH-W-X1
216681
Y7-216681
EATON - MOELLER
1 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Eaton Moeller M22-DRH-W-X1 pushbutton is a maintained, raised operator unit featuring clear labelling for dedicated switching tasks on industrial machinery. Such devices provide secure mechanical latching for continuous control circuits.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): White
- Number of command positions (EF001372): 1
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): High
- Suitable for lighting (EF001142): No
- With protective cover (EF005500): No
- Labelled (EF001537): Yes
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Chrome
- Degree of protection (IP), front side (EF003118): IP67/IP69K
More info
▲UL 508
IEC/EN 60947-5
CSA File No.: 012528
IEC/EN 60947
UL
UL File No.: E29184
UL Category Control No.: NKCR
VDE 0660
CSA-C22.2 No. 14-05
CSA Class No.: 3211-03
CSA-C22.2 No. 94-91
CE
GL
DNV
LR
Classical
IP69K
IP66
IP67
NEMA 3R
NEMA 12
NEMA 4X
NEMA 4X
30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Damp heat, cyclic, to IEC 60068-2-30
With SWD-RMQ connections
Switching function latching
