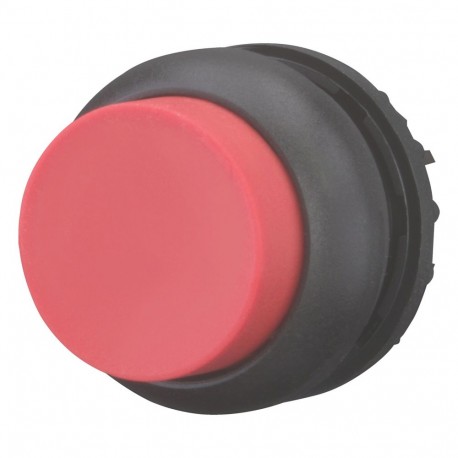

M22S-DH-R 216642 Y7-216642 EATON ELECTRIC Pushbutton, raised, red, momentary
M22S-DH-R
216642
Y7-216642
EATON - MOELLER
1 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller pushbutton, raised, red, momentary (part number M22S-DH-R) serves as an elevated operator control element used to send temporary shutdown or auxiliary commands within automated installations. The elevated button profile allows rapid physical location by operators in fast-paced manufacturing environments.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): Red
- Number of command positions (EF001372): 1
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): High
- Suitable for lighting (EF001142): No
- With protective cover (EF005500): No
- Labelled (EF001537): No
- Switching function latching (EF007447): No
- Spring-return (EF001407): Yes
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Degree of protection (IP), front side (EF003118): IP67/IP69K
More info
▲General specifications
UL Category Control No.: NKCR
VDE 0660
CSA
CSA-C22.2 No. 94-91
CSA File No.: 012528
IEC/EN 60947
UL
CE
CSA Class No.: 3211-03
UL File No.: E29184
CSA-C22.2 No. 14-05
UL 508
DNV
GL
LR
Features & Functions
Classical
General
IP67
NEMA 4X
NEMA 12
NEMA 3R
IP66
NEMA 13
NEMA 4X
Ambient conditions, mechanical
Mechanical, According to IEC/EN 60068-2-27
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
Communication
Yes
Actuator
Spring-return
