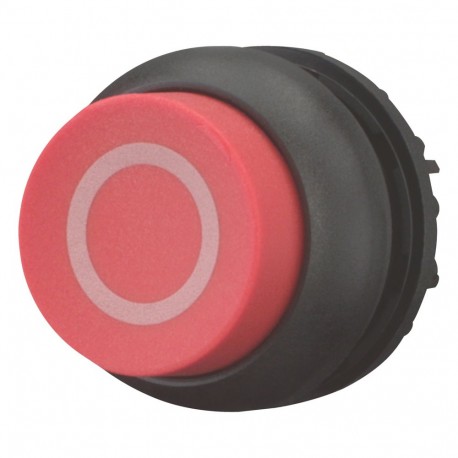

M22S-DH-R-X0 216656 Y7-216656 EATON ELECTRIC Pushbutton, raised, red 0, momentary
M22S-DH-R-X0
216656
Y7-216656
EATON - MOELLER
1 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This Eaton Moeller M22S-DH-R-X0 raised red pushbutton with a zero marking ensures critical stop and control functions are easily accessible on industrial machinery panels. Raised tactile buttons are widely integrated into safety-focused control systems to prevent accidental activation while remaining easy to strike.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Colour button: Red
- Number of command positions: 1
- Construction type lens: Round
- Hole diameter: 22.5 mm
- Width opening: 0 mm
- Height opening: 0 mm
- Type of button: High
- Suitable for lighting: No
- With protective cover: No
- Labelled: Yes
- Switching function latching: No
- Spring-return: Yes
- With front ring: Yes
- Material front ring: Plastic
- Colour front ring: Black
- Degree of protection (IP), front side: IP67/IP69K
More info
▲General specifications
UL 508
CSA-C22.2 No. 94-91
UL Category Control No.: NKCR
UL File No.: E29184
UL
CSA-C22.2 No. 14-05
CSA File No.: 012528
IEC/EN 60947-5
VDE 0660
CE
CSA Class No.: 3211-03
CSA
DNV
GL
LR
Features & Functions
Classical
General
IP67
NEMA 3R
NEMA 13
IP66
NEMA 4X
NEMA 12
NEMA 4X
Ambient conditions, mechanical
30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Communication
With SWD-RMQ connections
Actuator
Spring-return
