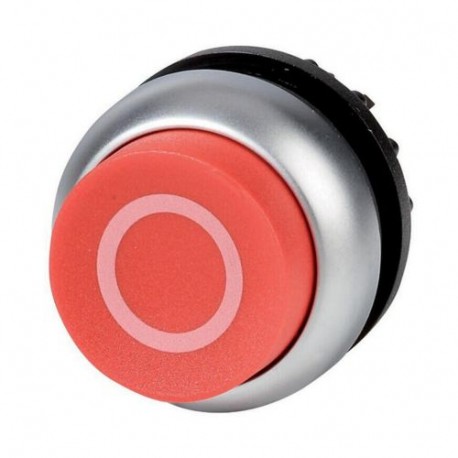

M22-DH-R-X0 216655 Y7-216655 EATON ELECTRIC Pushbutton, raised, red 0, momentary
M22-DH-R-X0
216655
Y7-216655
EATON - MOELLER
5 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller M22-DH-R-X0 is a raised red pushbutton designed for panel mounting in industrial automation and electrical distribution systems. Operators use this interface component to execute manual stop or reset functions where clear tactile identification is required on control consoles. Please note that pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): Red
- Number of command positions (EF001372): 1
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): High
- Suitable for lighting (EF001142): No
- With protective cover (EF005500): No
- Labelled (EF001537): Yes
- Switching function latching (EF007447): No
- Spring-return (EF001407): Yes
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Titanium
- Degree of protection (IP), front side (EF003118): IP67/IP69K
More info
▲IEC 60947-5
UL 508
CSA Std. C22.2 No. 14-05
EN 60947-5
VDE
IEC/EN 60947-5
CSA-C22.2 No. 14-05
UL
CE
CSA File No.: 012528
VDE 0660
CSA
UL Category Control No.: NKCR
CSA-C22.2 No. 94-91
CSA Class No.: 3211-03
IEC/EN 60947
UL File No.: E29184
GL
LR
DNV
Classical
NEMA 3R
NEMA 12
NEMA 13
IP67
IP69K
IP66
NEMA 4X
30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Damp heat, cyclic, to IEC 60068-2-30
With SWD-RMQ connections
Momentary
