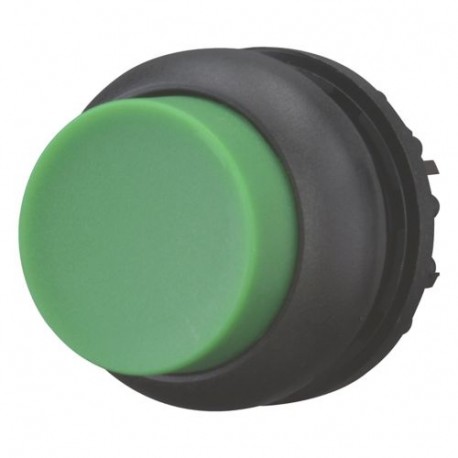

M22S-DRH-G 216670 Y7-216670 EATON ELECTRIC Pushbutton, raised, green, maintained
M22S-DRH-G
216670
Y7-216670
EATON - MOELLER
1 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller M22S-DRH-G is a raised pushbutton designed for manual control operations on industrial control panels, machine interfaces, and electrical switchgear. Operator pushbuttons of this type are routinely installed to issue direct start, stop, or mode-switching commands within automated machinery and distribution systems.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): Green
- Number of command positions (EF001372): 1
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): High
- Suitable for lighting (EF001142): No
- With protective cover (EF005500): No
- Labelled (EF001537): No
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Degree of protection (IP), front side (EF003118): IP67/IP69K
More info
▲General specifications
CSA-C22.2 No. 94-91
IEC/EN 60947
VDE 0660
IEC/EN 60947-5
CSA File No.: 012528
CSA-C22.2 No. 14-05
UL Category Control No.: NKCR
CE
UL File No.: E29184
CSA Class No.: 3211-03
CSA
UL
DNV
GL
LR
