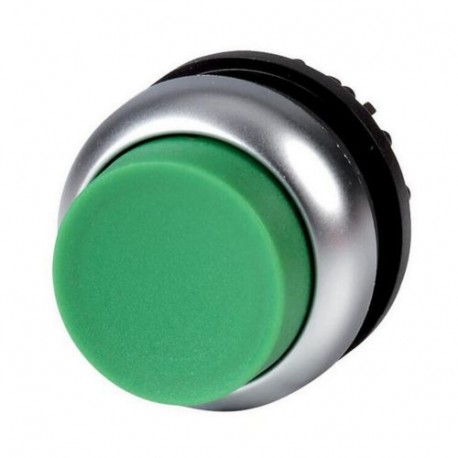

EATON - MOELLER M22-DRH-G M22-DRH-G 216669 Y7-216669 EATON ELECTRIC Pushbutton, raised, green, maintained View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-DRH-G 216669 Y7-216669 EATON ELECTRIC Pushbutton, raised, green, maintained

M22-DRH-G

216669

Y7-216669

EATON - MOELLER

5 Pcs.

Pushbutton, raised, green, maintained M22-DRH-G Eaton Moeller® series M22 Pushbutton, RMQ-Titan, Extended, maintained, green, Blank, Bezel: titanium Pushbutton, Product range: RMQ-Titan, Single unit, Design: Extended, maintained, button plate: green, Button plate Blank, Degree of Protection: IP66, IP67, IP69K, Bezel: titanium, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 22 x 22, Instructions: Stay-put/spring-return function can be changed on device, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for push button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller M22-DRH-G is a raised pushbutton designed for straightforward operator actuation in factory automation and machinery control panels. Maintained pushbuttons maintain their switched position until manually toggled back, making them suitable for specific operational interlocks.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour button (EF000190): Green
  • Number of command positions (EF001372): 1
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Type of button (EF001546): High
  • Suitable for lighting (EF001142): No
  • With protective cover (EF005500): No
  • Labelled (EF001537): No
  • Switching function latching (EF007447): Yes
  • Spring-return (EF001407): No
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Chrome
  • Degree of protection (IP), front side (EF003118): IP67/IP69K

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Pushbutton
Catalog Number
216669
Model Code
M22-DRH-G
EAN
4015082166694
Product Length/Depth
30 mm
Product Height
35 mm
Product Width
30 mm
Product Weight
0.013 kg
Compliances
CE Marked
Certifications
UL 508
CSA Std. C22.2 No. 94-91
CSA Std. C22.2 No. 14-05
EN 60947-5
IEC 60947-5
VDE
CSA Class No.: 3211-03
CSA File No.: 012528
CSA-C22.2 No. 14-05
UL
UL Category Control No.: NKCR
IEC/EN 60947
IEC/EN 60947-5
CSA-C22.2 No. 94-91
CE
CSA
UL File No.: E29184
VDE 0660
DNV
GL
LR
