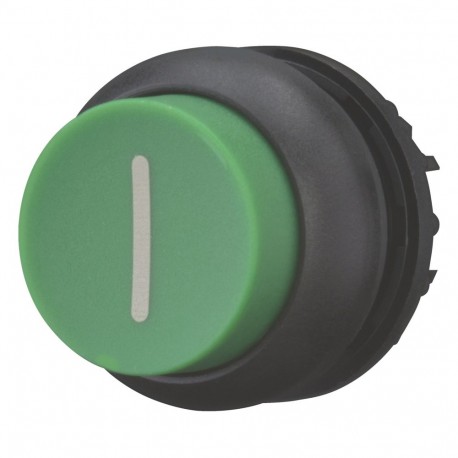

M22S-DH-G-X1 216658 Y7-216658 EATON ELECTRIC Pushbutton, raised, green I, momentary
M22S-DH-G-X1
216658
Y7-216658
EATON - MOELLER
1 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller M22S-DH-G-X1 pushbutton features a raised green lens with an 'I' label, designed for momentary start commands on electrical control stations. Raised buttons offer easy tactile access for machine operators.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): Green
- Number of command positions (EF001372): 1
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): High
- Suitable for lighting (EF001142): No
- With protective cover (EF005500): No
- Labelled (EF001537): Yes
- Switching function latching (EF007447): No
- Spring-return (EF001407): Yes
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Degree of protection (IP), front side (EF003118): IP67/IP69K
More info
▲General specifications
IEC/EN 60947-5
UL 508
UL File No.: E29184
IEC/EN 60947
CSA
CE
CSA Class No.: 3211-03
CSA File No.: 012528
UL
CSA-C22.2 No. 94-91
VDE 0660
UL Category Control No.: NKCR
DNV
GL
LR
Features & Functions
Classical
General
NEMA 12
IP69K
NEMA 4X
NEMA 13
IP67
IP66
IP67/IP69K
Ambient conditions, mechanical
30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Communication
Yes
Actuator
Momentary
