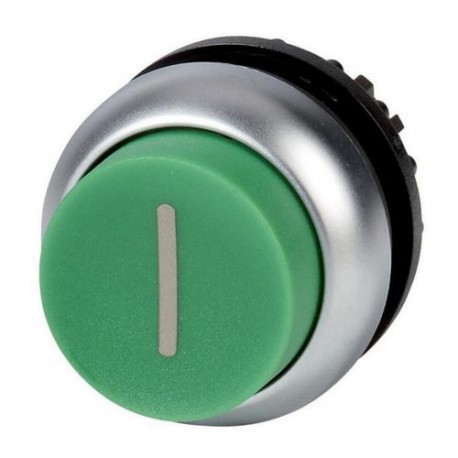

EATON - MOELLER M22-DRH-G-X1 M22-DRH-G-X1 216677 Y7-216677 EATON ELECTRIC Pushbutton, raised, green I, maintained View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-DRH-G-X1 216677 Y7-216677 EATON ELECTRIC Pushbutton, raised, green I, maintained

M22-DRH-G-X1

216677

Y7-216677

EATON - MOELLER

5 Pcs.

Pushbutton, raised, green I, maintained M22-DRH-G-X1 Eaton Moeller® series M22 Pushbutton, RMQ-Titan, Extended, maintained, green, inscribed, Bezel: titanium

Automation > Front element for push button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller M22-DRH-G-X1 is an extended green maintained pushbutton inscribed with an 'I' marker, built upon the reliable RMQ-Titan industrial series architecture. Maintained contact push-buttons are utilized across control panels to toggle continuous operational modes, power states, or system functions without requiring constant operator pressure. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Eaton Moeller
  • Manufacturer part number: M22-DRH-G-X1
  • Catalogue code: 216677
  • Catalogue title: M22-DRH-G-X1 216677 Y7-216677 EATON ELECTRIC Pushbutton, raised, green I, maintained
  • Product description: General specifications Product Name Eaton Moeller® series M22 Pushbutton Catalog Number 216677 Model Code M22-DRH-G-X1 EAN 4015082166779 Product Length/Depth 30 mm Product Height 35 mm Product Width 30 mm Product Weight
  • Manufacturer summary: Pushbutton, raised, green I, maintained M22-DRH-G-X1 Eaton Moeller® series M22 Pushbutton, RMQ-Titan, Extended, maintained, green, inscribed, Bezel: titanium

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Pushbutton
Catalog Number
216677
Model Code
M22-DRH-G-X1
EAN
4015082166779
Product Length/Depth
30 mm
Product Height
35 mm
Product Width
30 mm
Product Weight
0.013 kg
Certifications
CE
CSA File No.: 012528
CSA Class No.: 3211-03
VDE 0660
IEC/EN 60947
CSA
UL
CSA-C22.2 No. 14-05
UL 508
CSA-C22.2 No. 94-91
IEC/EN 60947-5
UL Category Control No.: NKCR
UL File No.: E29184
DNV
GL
LR

Product Datasheet
