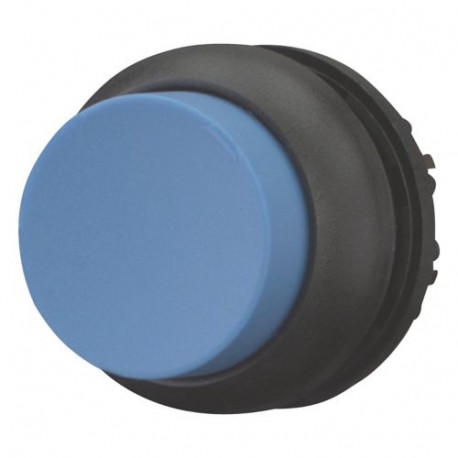

M22S-DRH-B 216674 Y7-216674 EATON ELECTRIC Pushbutton, raised, blue, maintained
M22S-DRH-B
216674
Y7-216674
EATON - MOELLER
1 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller M22S-DRH-B pushbutton provides maintained contact functionality for secure machine operation in industrial automation setups. Operators rely on these devices to maintain specific operating states until manually toggled back. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): Blue
- Number of command positions (EF001372): 1
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): High
- Suitable for lighting (EF001142): No
- With protective cover (EF005500): No
- Labelled (EF001537): No
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Degree of protection (IP), front side (EF003118): IP67/IP69K
More info
▲General specifications
CSA File No.: 012528
CSA
VDE 0660
UL
CSA-C22.2 No. 94-91
IEC/EN 60947
CSA-C22.2 No. 14-05
CE
UL Category Control No.: NKCR
CSA Class No.: 3211-03
IEC/EN 60947-5
UL File No.: E29184
DNV
GL
LR
Features & Functions
Classical
General
NEMA 12
NEMA 13
IP66
IP69K
NEMA 3R
NEMA 4X
NEMA 4X
Ambient conditions, mechanical
Mechanical, According to IEC/EN 60068-2-27
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
Communication
Yes
Actuator
Switching function latching
