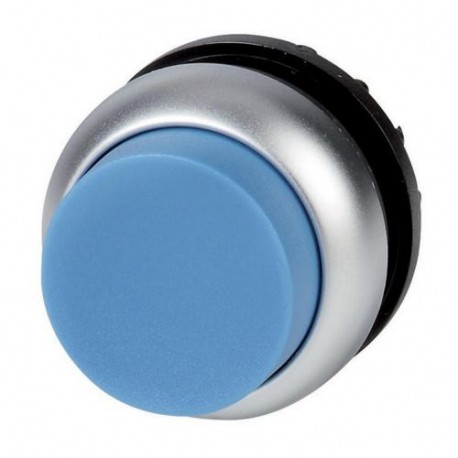

M22-DRH-B 216673 Y7-216673 EATON ELECTRIC Pushbutton, raised, blue, maintained
M22-DRH-B
216673
Y7-216673
EATON - MOELLER
1 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller M22-DRH-B blue raised maintained pushbutton maintains its switched position to support continuous operational control in industrial automation systems. Raised actuators facilitate quick manual activation on busy control boards.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): Blue
- Number of command positions (EF001372): 1
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): High
- Suitable for lighting (EF001142): No
- With protective cover (EF005500): No
- Labelled (EF001537): No
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Chrome
- Degree of protection (IP), front side (EF003118): IP67/IP69K
More info
▲General specifications
IEC 60947-5
CSA Std. C22.2 No. 94-91
UL 508
EN 60947-5
VDE
CSA File No.: 012528
CSA-C22.2 No. 14-05
UL
CSA-C22.2 No. 94-91
IEC/EN 60947
UL File No.: E29184
IEC/EN 60947-5
CE
CSA
UL Category Control No.: NKCR
CSA Class No.: 3211-03
VDE 0660
DNV
GL
LR
Features & Functions
Classical
General
NEMA 3R
IP69K
IP67
NEMA 4X
NEMA 13
NEMA 12
IP67/IP69K
Ambient conditions, mechanical
Mechanical, According to IEC/EN 60068-2-27
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
Communication
With SWD-RMQ connections
Actuator
Maintained
