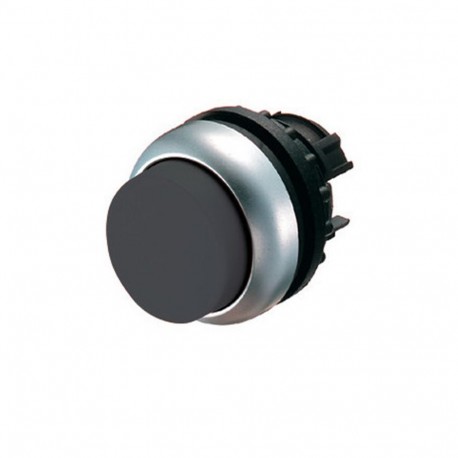

EATON - MOELLER M22-DH-S M22-DH-S 216636 Y7-216636 EATON ELECTRIC Pushbutton, raised, black, momentary View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-DH-S 216636 Y7-216636 EATON ELECTRIC Pushbutton, raised, black, momentary

M22-DH-S

216636

Y7-216636

EATON - MOELLER

5 Pcs.

Pushbutton, raised, black, momentary M22-DH-S Eaton Moeller® series M22 Pushbutton, RMQ-Titan, Extended, momentary, black, Blank, Bezel: titanium Pushbutton, Product range: RMQ-Titan, Single unit, Design: Extended, momentary, button plate: black, Button plate Blank, Degree of Protection: IP66, IP67, IP69K, Bezel: titanium, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 22 x 22, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for push button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller pushbutton, raised, black, momentary (part number M22-DH-S) provides a raised operator contact point that makes blind or gloved actuation easier on industrial control stations. Raised momentary pushbuttons deliver dependable electrical switching for routine machine commands.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour button (EF000190): Black
  • Number of command positions (EF001372): 1
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Type of button (EF001546): High
  • Suitable for lighting (EF001142): No
  • With protective cover (EF005500): No
  • Labelled (EF001537): No
  • Switching function latching (EF007447): No
  • Spring-return (EF001407): Yes
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Titanium
  • Degree of protection (IP), front side (EF003118): IP67/IP69K

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Pushbutton
Catalog Number
216636
Model Code
M22-DH-S
EAN
4015082166366
Product Length/Depth
30 mm
Product Height
35 mm
Product Width
30 mm
Product Weight
0.012 kg
Compliances
CE Marked
Certifications
CSA Std. C22.2 No. 94-91
IEC 60947-5
UL 508
EN 60947-5
CSA Std. C22.2 No. 14-05
VDE
CSA-C22.2 No. 94-91
IEC/EN 60947
UL Category Control No.: NKCR
CSA-C22.2 No. 14-05
UL File No.: E29184
IEC/EN 60947-5
UL
CSA
VDE 0660
CE
CSA Class No.: 3211-03
CSA File No.: 012528
DNV
GL
LR
