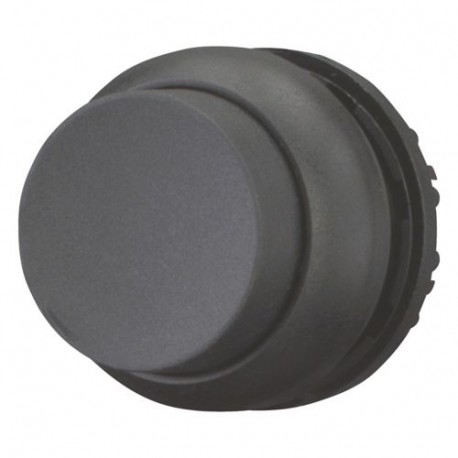

M22S-DRH-S 216664 Y7-216664 EATON ELECTRIC Pushbutton, raised, black, maintained
M22S-DRH-S
216664
Y7-216664
EATON - MOELLER
1 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller pushbutton is a standard industrial control mechanism designed for mounting in machine control panels to direct electrical operations through manual actuation. Plant engineers rely on these versatile operator interfaces to manage circuit states securely across manufacturing setups.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): Black
- Number of command positions (EF001372): 1
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): High
- Suitable for lighting (EF001142): No
- With protective cover (EF005500): No
- Labelled (EF001537): No
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Degree of protection (IP), front side (EF003118): IP67/IP69K
More info
▲General specifications
UL 508
CE
CSA Class No.: 3211-03
CSA
VDE 0660
CSA-C22.2 No. 94-91
IEC/EN 60947
UL
UL Category Control No.: NKCR
UL File No.: E29184
CSA File No.: 012528
CSA-C22.2 No. 14-05
DNV
GL
LR
Features & Functions
Classical
General
NEMA 3R
NEMA 4X
NEMA 13
IP69K
NEMA 12
IP66
IP67/IP69K
Ambient conditions, mechanical
Mechanical, According to IEC/EN 60068-2-27
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
Communication
With SWD-RMQ connections
Actuator
Maintained
