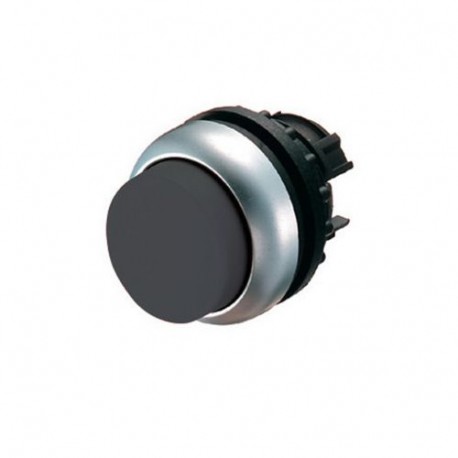

M22-DRH-S 216663 Y7-216663 EATON ELECTRIC Pushbutton, raised, black, maintained
M22-DRH-S
216663
Y7-216663
EATON - MOELLER
5 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller M22-DRH-S pushbutton is a raised operator actuator built for industrial control environments, providing reliable maintained switching action for automation systems and electrical distribution boards. Its prominent profile ensures easy tactile identification by personnel. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): Black
- Number of command positions (EF001372): 1
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): High
- Suitable for lighting (EF001142): No
- With protective cover (EF005500): No
- Labelled (EF001537): No
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Chrome
- Degree of protection (IP), front side (EF003118): IP67/IP69K
More info
▲General specifications
UL 508
CSA-C22.2 No. 14-05
IEC/EN 60947
VDE 0660
UL Category Control No.: NKCR
CE
CSA
IEC/EN 60947-5
UL
CSA Class No.: 3211-03
UL File No.: E29184
CSA-C22.2 No. 94-91
DNV
GL
LR
Features & Functions
Classical
General
IP69K
NEMA 4X
NEMA 12
NEMA 13
IP66
IP67
NEMA 4X
Ambient conditions, mechanical
30 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Communication
Yes
Actuator
Switching function latching
