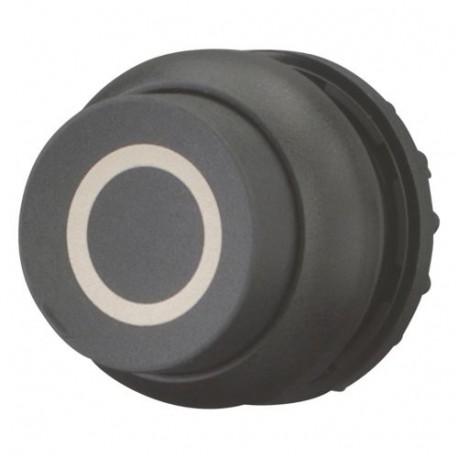

M22S-DRH-S-X0 216680 Y7-216680 EATON ELECTRIC Pushbutton, raised, black 0, maintained
M22S-DRH-S-X0
216680
Y7-216680
EATON - MOELLER
1 Pcs.
Automation > Front element for push button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Eaton Moeller M22S-DRH-S-X0 is a maintained raised pushbutton marked with a zero symbol, engineered for secure switching tasks in electrical distribution and control gear. Maintained operators retain their mechanical position until reset by the operator.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): Black
- Number of command positions (EF001372): 1
- Construction type lens (EF006253): Round
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Type of button (EF001546): High
- Suitable for lighting (EF001142): No
- With protective cover (EF005500): No
- Labelled (EF001537): Yes
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- With front ring (EF006014): Yes
- Material front ring (EF005972): Plastic
- Colour front ring (EF002429): Black
- Degree of protection (IP), front side (EF003118): IP67/IP69K
More info
▲General specifications
CSA File No.: 012528
VDE 0660
CSA-C22.2 No. 14-05
UL 508
CE
CSA
CSA-C22.2 No. 94-91
IEC/EN 60947-5
UL
IEC/EN 60947
UL Category Control No.: NKCR
CSA Class No.: 3211-03
DNV
GL
LR
