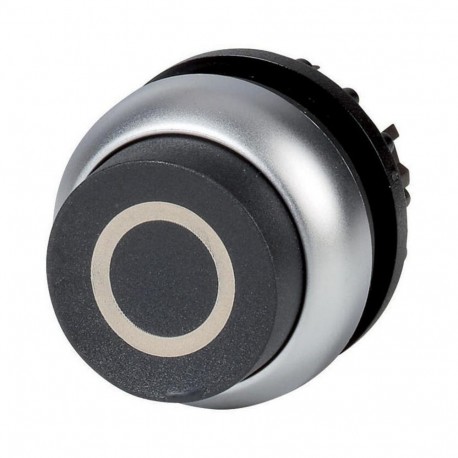

EATON - MOELLER M22-DRH-S-X0 M22-DRH-S-X0 216679 Y7-216679 EATON ELECTRIC Pushbutton, raised, black 0, maintained View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-DRH-S-X0 216679 Y7-216679 EATON ELECTRIC Pushbutton, raised, black 0, maintained

M22-DRH-S-X0

216679

Y7-216679

EATON - MOELLER

1 Pcs.

Pushbutton, raised, black 0, maintained M22-DRH-S-X0 Eaton Moeller® series M22 Pushbutton, RMQ-Titan, Extended, maintained, black, inscribed, Bezel: titanium Pushbutton, Product range: RMQ-Titan, Single unit, Design: Extended, maintained, button plate: black, Button plate inscribed, Degree of Protection: IP66, IP67, IP69K, Bezel: titanium, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 22 x 22, Instructions: Stay-put/spring-return function can be changed on device, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for push button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller M22-DRH-S-X0 raised pushbutton provides a maintained, labelled control input for industrial switchgear and machinery, allowing operators to easily actuate and hold specific operational commands. Raised profiles are especially useful in applications requiring quick tactile identification on crowded control boards.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour button (EF000190): Black
  • Number of command positions (EF001372): 1
  • Construction type lens (EF006253): Round
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Type of button (EF001546): High
  • Suitable for lighting (EF001142): No
  • With protective cover (EF005500): No
  • Labelled (EF001537): Yes
  • Switching function latching (EF007447): Yes
  • Spring-return (EF001407): No
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Titanium
  • Degree of protection (IP), front side (EF003118): IP67/IP69K

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Pushbutton
Catalog Number
216679
Model Code
M22-DRH-S-X0
EAN
4015082166793
Product Length/Depth
30 mm
Product Height
35 mm
Product Width
30 mm
Product Weight
0.013 kg
Certifications
CSA-C22.2 No. 94-91
CSA File No.: 012528
CSA-C22.2 No. 14-05
UL
CE
CSA
IEC/EN 60947-5
UL 508
UL File No.: E29184
UL Category Control No.: NKCR
VDE 0660
IEC/EN 60947
CSA Class No.: 3211-03
DNV
GL
LR

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
